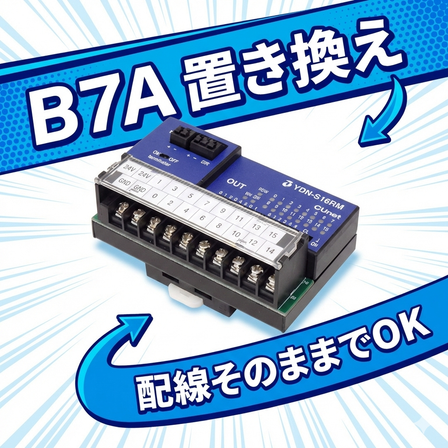

B7A Replacement YDN-S16 Series
Suitable for replacement of Omron's B7AS series.
- Compatible with captive tire cables and twisted pair shielded cables. - PLC connector specifications available for use with the YDN-S16 series. - No master unit required, no software needed, communication settings can be configured with DIP switches. - Strong against noise, enabling high-quality communication.
basic information
- Compact size of D: 64mm, W: 102mm, H: 48mm, compatible with both DIN rail mounting and direct mounting. - Input specifications: YDN-S16SM has no polarity; output specifications: YDN-S16RM (NPN), YDN-S16RM-P (PNP). - High-speed specification: 2.4ms, standard specification: 9.5ms is set by DIP switch. - YDN-S16RM has an output current of 0.5A per point, common 3A, has error output, and includes a LOAD OFF function. - YDN-S16RM-P has an output current of 0.3A per point, common 3A, has error output, and includes a LOAD OFF function.
Price range
Delivery Time
Applications/Examples of results
Replacement from Omron B7A link terminal Implementation in space-saving sensor boxes, etc.
