Electric height adjustment and easy mobility! Vehicle speed-following compact cooling fan.
Easy to move with two people and caster mobility! Space-saving design accommodates various vehicle types and tests, from automobiles to general fluid analysis, all with one unit.

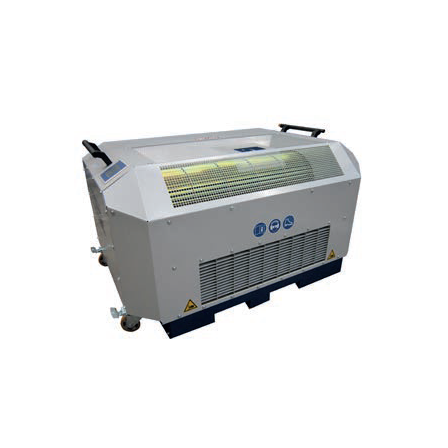

The "type VQF 500/1250" is specially designed for use with chassis dynamometers, but it can also be used for general cooling and fluid analysis. It is a vehicle speed-following cooling fan. Its wide range of applications is suitable not only for the automotive industry but also for mechanical design and system testing laboratories. It employs a tangential fan, which offers significant advantages such as "uniform and laminar airflow across the entire length of the fan outlet" and "space-saving design due to a 90° airflow pattern." 【Features】 ■ Capable of simulating maximum wind speeds of 135 km/h or 160 km/h ■ Equipped with movable casters for use with various vehicle types, and height adjustment is possible electrically ■ Manual operation via the control panel included with the main unit or automatic operation through external control (analog signals 0-10V, 4-20mA) ■ Power supply and frequency: 400V/50Hz, 380-480V/Hz *For more details, please refer to the PDF document or feel free to contact us.
basic information
【135km/h Standard Model Specifications (Partial)】 ■ Maximum Wind Speed: 135km/h ■ Maximum Air Volume: 40,880m³/h ■ Operating Temperature Conditions (excluding humidity and condensation): -10 to +40℃ ■ Motor Power: 22kW *For more details, please refer to the PDF document or feel free to contact us.
Price range
Delivery Time
Applications/Examples of results
【Usage】 ■ Used with chassis dynamometers ■ General cooling and fluid analysis *For more details, please refer to the PDF document or feel free to contact us.
catalog（1）
Download All Catalogs
Recommended products
Distributors
Our company is the exclusive agent in Japan for the renowned German company LTG, which specializes in fluid dynamics applications, and we handle a wide range of LTG's tangential fans (crossflow fans). Additionally, since our establishment, we have a long history of delivering drying ovens and dewatering ovens, allowing us to provide a wide range of proposals that go beyond just suggesting "ovens" and meet our customers' essential needs. Please feel free to contact us if you have any inquiries.
