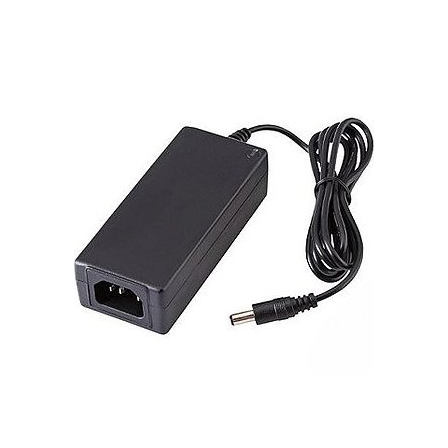

30W AC Adapter Reliable High Quality PSE Marked Power Supply
30W AC adapter with high reliability and quality, PSE mark included, available in small quantities and with short delivery times.
Are you looking for an AC adapter? This is an external power supply with a 30W PSE mark (Electrical Appliance and Material Safety Law). The output is DC12V2.5A or DC24V1.25A, among others. It is an AC adapter that complies with international safety certifications such as IEC62368-1 and 60950-1. Please consider it for connecting to electronic devices under development or electrical products you plan to import. We also accept connections for your desired DC plug and specified connectors. We prioritize reliability and are equipped with various protection circuits such as OVP and SCP. We provide consistent support from our staff, comprehensive after-sales support, and a long-term warranty. 【Features】 ■ PSE mark (Electrical Appliance and Material Safety Law) ■ Compliant with IEC62368-1 (partially 60950-1) ■ Connection for your desired DC plug ■ All units undergo inspection ■ Long-term stable supply ■ 5-year long-term warranty *For more details, please refer to the PDF document or feel free to contact us.
basic information
【Overview】 ■ Desktop type ■ Input voltage: 80-275VAC ■ Frequency: 47-63Hz ■ Insulation protection: Class I ■ Operating temperature: -20℃ to 70℃ (with temperature derating) ■ Operating humidity: 0 to 95% ■ Storage temperature: -40℃ to 85℃ ■ Storage humidity: 0 to 95% ■ MTBF: 100,000 hours (calculated value) It is essential to choose a reliable AC adapter for electronic devices or to carefully design the power supply section. Are you considering either an AC adapter (external power supply) or a switching power supply (built-in power supply)? If you choose an AC adapter, there are advantages such as easier resolution of heat and noise issues, legal compliance, potential for miniaturization, simplified maintenance, and cost reduction. We handle a variety of products with the PSE mark under the Electrical Appliance and Material Safety Law. We can also discuss your desired DC connector connection, additional applications for safety standards, component adjustments, and custom orders. *Please note that the status of safety standard acquisition may vary. For the latest information, please check with us. *Feel free to consult us for more details.
Price range
Delivery Time
Model number/Brand name
AC adapter with a PSE mark that complies with the standard IEC62368-1.
Applications/Examples of results
[Applications] General: Communication devices, Wi-Fi equipment, PC peripherals, refrigerators, water purifiers, leisure equipment, sports equipment, seasonal decorations, etc. Industrial: Store ordering terminals, commercial printers, security cameras, broadcasting equipment, network devices, advertising signs, etc. Medical: Blood pressure monitors, electrocardiograms, ultrasound devices, in-hospital cameras, laser equipment, X-ray devices, suction devices, treadmills, etc. *For more details, please feel free to contact us. We also accommodate connections for specified plugs, changes in wire lengths, center negative (reverse polarity) configurations, etc. (High-capacity connectors, high mating connectors, EIAJ plugs, Canon connectors, XLR, Hirose, SMK, DIN, mis-mating prevention plugs, pull-out prevention locking types, screw types, and more) For labeling with your logo, mounting specified components, reliability test data, short delivery times, small lot sizes, custom orders, new developments, large-scale production, and other inquiries related to AC adapters, please feel free to consult us.
Line up（10）
| Model number | overview |
|---|---|
| IPU31-102* | Output voltage: 5-6VDC Output current: 4.00-3.33A TR: 5% Maximum output: 20W Safety standards: PSE, UL/cUL, CE, CB, TUV-GS, CEC-V, FCC, RoHS2 |
| IPU31-103* | Output voltage: 6-8VDC Output current: 4.16-3.12A TR: 5% Maximum output: 25W Safety standards: PSE, UL/cUL, CE, CB, TUV-GS, CEC-V, FCC, RoHS2 |
| IPU31-104* | Output voltage: 8-11VDC Output current: 3.75-2.72A TR: 5% Maximum output: 30W Safety standards: PSE, UL/cUL, CE, CB, TUV-GS, CEC-V, FCC, RoHS2 |
| IPU31-105 | Output voltage: 11-13VDC Output current: 2.72-2.30A TR: 5% Maximum output: 30W Safety standards: PSE, UL/cUL, CE, CB, TUV-GS, CEC-V, FCC, RoHS2 |
| IPU31-106 | Output voltage: 13-16VDC Output current: 2.30-1.87A TR: 5% Maximum output: 30W Safety standards: PSE, UL/cUL, CE, CB, TUV-GS, CEC-V, FCC, RoHS2 |
| IPU31-107 | Output voltage: 16-21VDC Output current: 1.87-1.42A TR: 5% Maximum output: 30W Safety standards: PSE, UL/cUL, CE, CB, TUV-GS, CEC-V, FCC, RoHS2 |
| IPU31-108 | Output voltage: 21-27VDC Output current: 1.42-1.11A TR: 3% Maximum output: 30W Safety standards: PSE, UL/cUL, CE, CB, TUV-GS, CEC-V, FCC, RoHS2 |
| IPU31-109* | Output voltage: 27-33VDC Output current: 1.11-0.90A TR: 5% Maximum output: 30W Safety standards: PSE, UL/cUL, CE, CB, TUV-GS, CEC-V, FCC, RoHS2 |
| IPU31-110* | Output voltage: 33-40VDC Output current: 0.90-0.75A TR: 3% Maximum output: 30W Safety standards: PSE, UL/cUL, CE, CB, TUV-GS, CEC-V, FCC, RoHS2 |
| IPU31-111* | Output voltage: 40-50VDC Output current: 0.75-0.60A TR: 3% Maximum output: 30W Safety standards: PSE, UL/cUL, CE, CB, TUV-GS, CEC-V, FCC, RoHS2 |
