65W AC Adapter Information and Medical - White and Black

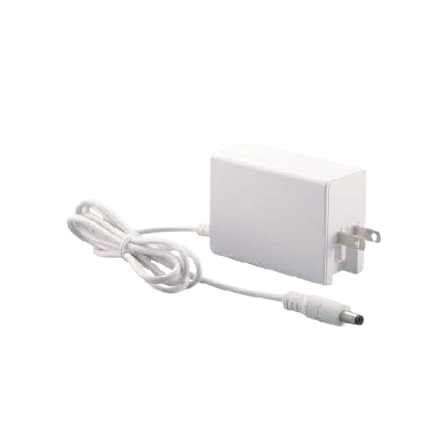

【AC Adapter, Power Supply, PSE and Medical Standards, Short Delivery Time】65W AC Adapter with interchangeable pins for different export destinations, ATM065A4.
The ATM065A4 series is a high-reliability AC adapter in the 65W class that supports a wide range of applications, including general electronic devices, information equipment, communication devices, and medical equipment. It has obtained safety certifications from various countries around the world, including Japan's PSE mark, UL/cUL, RU, FCC, CE, and GS, making it suitable for overseas export as well. We can manufacture not only in black but also in white. Please consult us for mass production launches or urgent power supply procurement. Consider it for connection to electronic devices you are developing or electrical products you plan to import. The input pins can be folded. Output is DC24V2.7A, among others. It is an AC adapter that complies with the Electrical Appliance and Material Safety Law, with 100% inspection conducted. Long-term stable supply is guaranteed. 【Features】 ■ Complies with IEC62368-1 & IEC60601-1 ■ PSE mark displayed; passed conformity testing ■ UL, RU, FCC, GS, CE, and others ■ Long-term stable supply ■ 100% inspection conducted ■ 2-year warranty * Please inquire about the compliance status with the latest safety standards. * We provide support from the selection of AC adapters.
basic information
【Overview】 ■ AC Adapter: Desktop type ■ Input Voltage: 100–240VAC ■ Output Voltage: DC12V/15V/19V/24V/48V, etc. ■ Frequency: 50–60Hz ■ Output Voltage: As described below ■ Operating Temperature: -20–40℃ ■ Operating Humidity: 20–80% ■ Storage Temperature: -20–80°C ■ Storage Humidity: 10–90% (No droplets) ■ MTBF: 300,000 hours (calculated value) This AC adapter is suitable for external power supply of various electronic devices (compliant with IEC62368-1 and IEC60601-1). Customization options are available, such as changing cable length, DC plug modifications, and adding noise filters. CE marked. Available in small quantities to mass production. Relatively short delivery times. There is also a wealth of experience in adoption by major companies. Compact and lightweight casing. Dedicated staff provide consistent support from consultation, quotes, development, manufacturing, delivery, to after-sales support. * The status of safety standard acquisition may fluctuate. Please check with us for the latest compliance status. * For more details, feel free to contact us. * We provide support from the selection of AC adapters.
Price range
Delivery Time
Model number/Brand name
AC adapter ATM065A4 series, compliant with 62368 and 60601 | Multiple international certifications & interchangeable pins, highly reliable switching adapter.
Applications/Examples of results
【Applications】 Our AC adapters are suitable for a variety of applications. General Equipment: Communication devices, Wi-Fi equipment, PC peripherals, water purifiers, leisure equipment, sports devices, and more. Industrial Equipment: Retail terminals, commercial printers, security equipment, broadcasting video equipment, network devices, signage, and more. Medical Equipment: Blood pressure monitors, electrocardiograms, ultrasound diagnostic devices, various data loggers, X-ray machines, suction devices, electronic medical records, and more. Home Appliances: Air purifiers, small cooking appliances, portable refrigerators, and other small home appliances. <Custom Solutions> We offer customizable AC adapters tailored to your specifications. Options include specified plug connections, changes in wire length, center negative (reverse polarity), Canon connectors, connectors that excel in fit and withstand high capacity, EIAJ plugs, XLR, Hirose, Nanahoshi, SMK, DIN, and special specifications such as misalignment prevention tabs, pull-out prevention locks, and screw types. <Custom Orders and Mass Production> Logo on labels, use of specified components, provision of reliability test data, short lead times, from small lots to large-scale mass production. *We manage everything from design, manufacturing, inspection, to shipping in a consistent manner. We provide high-quality AC adapters. *Please feel free to contact us for more details.
Line up（5）
| Model number | overview |
|---|---|
| ATM065A4-W120 | DC12.0V 5.00A 60W |
| ATM065A4-W150 | DC15.0V 4.34A 65W |
| ATM065A4-W190 | DC19.0V 3.43A 65W |
| ATM065A4-W240 | DC24.0V 2.71A 65W |
| ATM065A4-W480 | DC48.0V 1.36A 65W |
catalog（4）
Download All Catalogs
Recommended products
Distributors
We manufacture AC adapters on a made-to-order basis at our overseas factory. We handle switching AC adapters with PSE marks (Electrical Appliance and Material Safety Law) and power cables (AC cords) for domestic use in Japan and for overseas export, all with PSE marks (certified by UL, VDE, CCC, KC, BIS, etc.). We also sell AC adapters that meet medical standards, touch panel PCs, hospital-grade power cords with anti-pull and lock features, and antibacterial waterproof keyboards and mice, all suitable for medical devices and hygienic environments. We are currently selling ODU connectors with high durability for insertion and removal, as well as wiring materials such as cable ties and wiring ducts, imported directly from the factory. We prioritize environmental considerations and comply with RoHS2, ChemSHERPA, provide reliability testing documentation, issue non-applicability judgment letters and delivery specifications, and support various reporting documents. Please consult us for OEM inquiries. We believe that "high-quality products are born from strictly managed manufacturing sites," and we thoroughly enforce quality control. With 36 years of experience in the electrical industry, we have obtained ISO 9001:2015 certification in-house. Our dedicated staff provides consistent support to respond quickly and accurately to customer needs. Additionally, we have expanded our office in Vietnam to accommodate trilateral trade, overseas deliveries, and foreign currency transactions in US dollars. For more details, please visit our official website.
