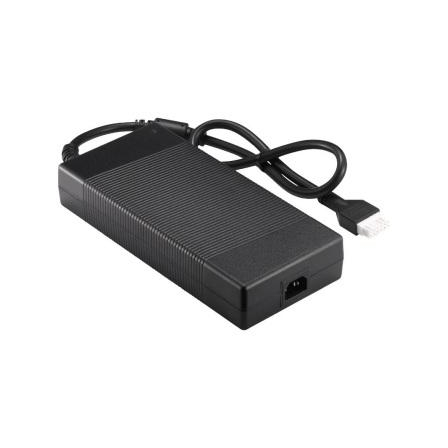

600W AC Adapter “ATM600A4”｜Compact High‑Power External Power Supply with DC12V/15V/24V Options.
Contributes to reducing chassis space, separating heat sources, and reducing design man-hours! Suitable for replacement from built-in power supplies.
The "ATM600A4" is a high-output external power supply for medical devices. Heat and noise issues can be minimized by switching from an open‑frame power supply to an external AC adapter. By separating the power source from the main unit, the system achieves better thermal management, reduced acoustic noise, and improved long‑term reliability. By converting high-output devices that were traditionally equipped with built-in power supplies to an external AC adapter, it achieves miniaturization of the housing, separation of heat sources, reduction of design workload, and improved safety. It is expected to support a wide range of output voltages from DC12V to DC56V, making it suitable for various applications such as industrial equipment, communication devices, network equipment, and inspection devices. 【Features】 ■ Expected to comply with IEC62368-1 (safety standard for information and AV equipment) ■ High-output external power supply unit in the 600W class ■ Expected to comply with PSE (Electrical Appliance and Material Safety Law) ■ Wide voltage lineup including DC12V, DC24V, DC48V, and DC56V ■ Custom manufacturing (OEM/ODM) available ■ High reliability design and long-term supply *For more details, please download the PDF or feel free to contact us.
basic information
【Specifications (Partial)】 ■Maximum Output: 600W ■Input Voltage: 100-240VAC (Multi-input) ■Operating Temperature: -20 to 40℃ ■Operating Humidity: 20-80% ■External Dimensions: L254 x W119 x H50.5 mm *For more details, please download the PDF or feel free to contact us.
Price range
Delivery Time
Model number/Brand name
Heat and noise issues can be minimized by switching from an open‑frame power supply to an external AC adapter. By separating the power source from the main unit, the system achieves better thermal management, reduced acoustic noise, and improved long‑term reliability.
Applications/Examples of results
For more details, please download the PDF or feel free to contact us.
Line up（4）
| Model number | overview |
|---|---|
| ATM600A4-P120 | Output voltage: 12.0V Output current: 45.00A Maximum output: 540W Safety standards: CB/UL/cUL/FCC/GS/CE/BSMI/CCC/RCM/LPS Green Mode CEC, DoE Level VI, Energy Star, ErP Stage 2, CoC Tier 2, NRCan & GEMS Level VI |
| ATM600A4-P240 | Output voltage: 24.0V Output current: 25.00A Maximum output: 600W Safety standards: CB/UL/cUL/FCC/GS/CE/BSMI/CCC/RCM/LPS Green Mode CEC, DoE Level VI, Energy Star, ErP Stage 2, CoC Tier 2, NRCan & GEMS Level VI |
| ATM600A4-P480 | Output Voltage: 48.0V Output Current: 12.50A Maximum Output: 600W Safety Standards: CB/UL/cUL/FCC/GS/CE/BSMI/CCC/RCM/LPS Green Mode CEC, DoE Level VI, Energy Star, ErP Stage 2, CoC Tier 2, NRCan & GEMS Level VI |
| ATM600A4-P560 | Output voltage: 56.0V Output current: 10.75A Maximum output: 600W Safety standards: CB/UL/cUL/FCC/GS/CE/BSMI/CCC/RCM/LPS Green Mode CEC, DoE Level VI, Energy Star, ErP Stage 2, CoC Tier 2, NRCan & GEMS Level VI |
