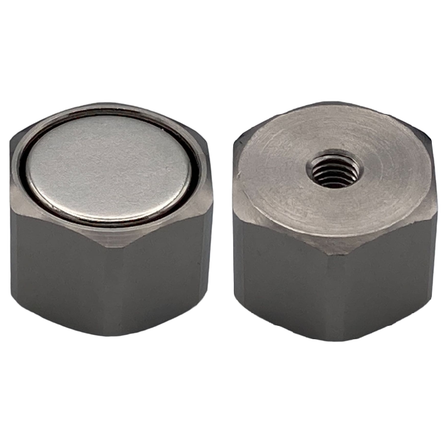

Magnetic Hexagon Holder
A neodymium magnet with strong adhesive force is incorporated into the hex nut. It can be used for adhesion of products and jigs by utilizing the screw hole.
Due to its hexagonal shape, it can be held in place with a wrench or similar tool to prevent it from turning. Additionally, it is also possible to use a wrench or similar tool to tighten it strongly in the opposite direction.
basic information
【Material】 Main body: SS400/Electroless nickel plating Magnet: Neodymium magnet/Nickel plating 【Size】 M3 ... Adhesive force 9N, Hexagon side 8mm, Total length 8mm M4 ... Adhesive force 28N, Hexagon side 10mm, Total length 9mm M4 ... Adhesive force 69N, Hexagon side 13mm, Total length 10mm M5 ... Adhesive force 149N, Hexagon side 17mm, Total length 11mm M5 ... Adhesive force 168N, Hexagon side 19mm, Total length 13mm M6 ... Adhesive force 195N, Hexagon side 21mm, Total length 15mm
Price range
Delivery Time
Model number/Brand name
HHMM
Applications/Examples of results
【Usage】 It can be used for suction of products and jigs by utilizing screw holes.
