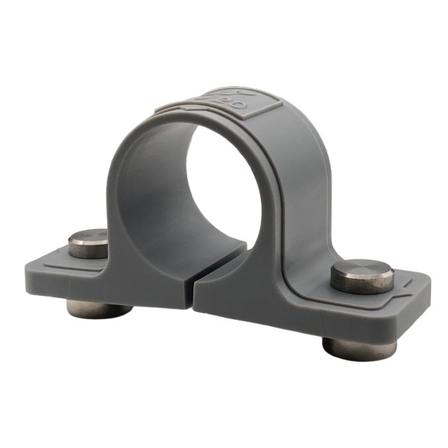

Resin saddle for VP pipe with magnet
Products with a powerful neodymium magnet attached to a resin saddle can be mounted on walls, etc. (only where the magnet can adhere) without the need for screws or bolts.
The installation direction can be adjusted 360 degrees. For non-ferrous materials, wood, tiles, etc., please consider purchasing the separately sold [magnet mounting plate with double-sided tape]. Using the included anti-slip rubber will prevent scratches and make it less likely to slip off.
basic information
■Material Resin saddle: PP (Polypropylene) Magnet: Neodymium/Nickel-plated Fastener: SUS303 Screw: Equivalent to SUS304 Non-slip rubber: CR sponge (t=0.5)/C4305 double-sided tape/Nitto 5000NS ■Product Specifications Compatible pipe 13A ... Adhesive force 56N, mounting hole φ18mm Compatible pipe 16A ... Adhesive force 56N, mounting hole φ22mm Compatible pipe 20A ... Adhesive force 56N, mounting hole φ26mm Compatible pipe 25A ... Adhesive force 56N, mounting hole φ32mm Compatible pipe 30A ... Adhesive force 56N, mounting hole φ38mm
Price range
Delivery Time
Model number/Brand name
SWPM
Applications/Examples of results
For holding and securing VP pipes, cables, and circular-shaped items.
Detailed information
Line up（5）
| Model number | overview |
|---|---|
| SWPM13 | Compatible with pipe 13A... suction force 56N, mounting hole φ18mm |
| SWPM16 | Compatible with pipe 16A... suction force 56N, mounting hole φ22mm |
| SWPM20 | Compatible with pipe 20A... suction force 56N, mounting hole φ26mm |
| SWPM25 | Compatible with pipe 25A... suction force 56N, mounting hole φ32mm |
| SWPM30 | Compatible with pipe 30A... suction force 56N, mounting hole φ38mm |
