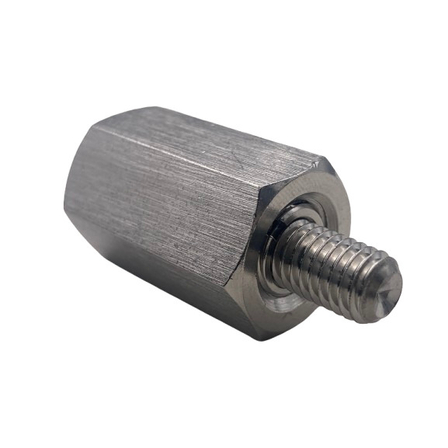

Screw conversion unit male-female
This is a stainless steel conversion unit that allows you to change the screw size. If the screw part you want to install does not fit, you can use this product to convert the size.
By attaching this product to the screw, you can reduce the size (e.g., from M6 to M4). Conversely, by inserting this product into the screw hole, you can increase the size (e.g., from M4 to M6).
basic information
■Material (Screw, Body, Fittings) Equivalent to SUS304 ■Specifications External thread: M3 / Internal thread: M5 External thread: M3 / Internal thread: M6 External thread: M4 / Internal thread: M6 External thread: M4 / Internal thread: M8 External thread: M5 / Internal thread: M8 External thread: M6 / Internal thread: M8 External thread: M4 / Internal thread: M10 External thread: M5 / Internal thread: M10 External thread: M6 / Internal thread: M10 External thread: M6 / Internal thread: M12 External thread: M8 / Internal thread: M12 External thread: M10 / Internal thread: M16 External thread: M12 / Internal thread: M16
Price range
Delivery Time
Model number/Brand name
SCU_MF_
Applications/Examples of results
For converting screw sizes.
Detailed information
Line up（13）
| Model number | overview |
|---|---|
| SCU03MF05-15A | Female thread: M3 Male thread: M5 |
| SCU03MF06-15A | Male thread: M3, Female thread: M6 |
| SCU04MF06-15A | Male thread: M4, Female thread: M6 |
| SCU04MF08-20A | External thread: M4 Internal thread: M8 |
| SCU05MF08-20A | External thread: M5 Internal thread: M8 |
| SCU06MF08-20A | Male thread: M6 Female thread: M8 |
| SCU04MF10-25A | Male thread: M4 Female thread: M10 |
| SCU05MF10-25A | External thread: M5 Internal thread: M10 |
| SCU06MF10-25A | Male thread: M6 Female thread: M10 |
| SCU06MF12-30A | Male thread: M6 Female thread: M12 |
| SCU08MF12-30A | Bolt: M8, Nut: M12 |
| SCU10MF16-40A | External thread: M10 Internal thread: M16 |
| SCU12MF16-40A | External thread: M12 Internal thread: M16 |
catalog（1）
Download All Catalogs
