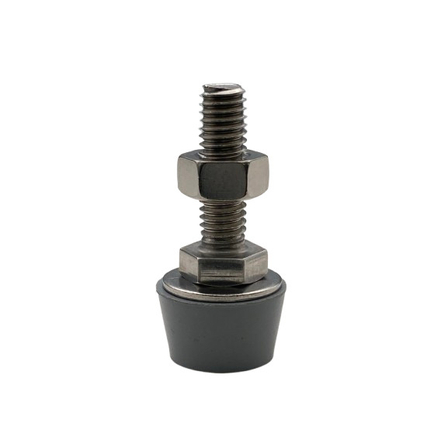

Adjuster bolt non-migrating rubber foot
This is an adjustable bolt with a non-migrating rubber base that is resistant to color transfer. The base and the screw part rotate independently, allowing for height adjustment after installation.
It can also be used as a damper for shock and vibration absorption. The rubber part is made from materials that have heat resistance, wear resistance, and aging resistance.
basic information
■Material Rubber: SBR (Gray) Hardness: 60 degrees ± 5 degrees Rubber internal washer: SPCC/trivalent chrome Bolt, hex nut (Type 1), washer: Equivalent to SUS304 ■Specifications Allowable load 75N ... M5 screw length 16mm Allowable load 75N ... M6 screw length 20mm Allowable load 75N ... M8 screw length 25mm
Price range
Delivery Time
Model number/Brand name
ABSSG
Applications/Examples of results
To the legs of various machines, equipment, and workbenches.
Detailed information
Line up（3）
| Model number | overview |
|---|---|
| ABSSG5-16 | Allowable load 75N, M5, screw length 16mm |
| ABSSG6-20 | Allowable load 75N, M6, screw length 20mm |
| ABSSG8-25 | Allowable load 75N M8 screw length 25mm |
