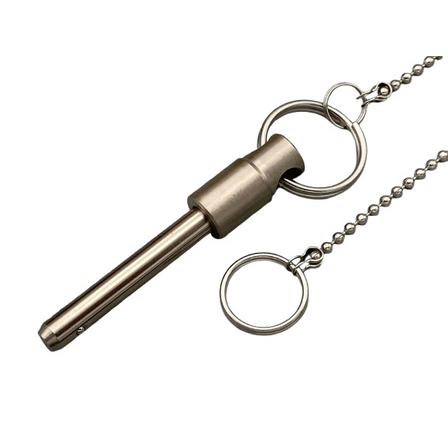

Ball lock pin, iron, with drop prevention chain.
This is a ball lock pin that allows for easy positioning, securing, and detaching of workpieces.
It comes with a ball chain and ring to prevent falling off, which is also effective for loss prevention. It can be easily inserted and removed, making it user-friendly for anyone. It is suitable for use as a substitute for bolts and rivets. This product is a plated type made of S45C, which is less prone to showing scratches and other marks.
basic information
■Material Main body: S45C / Electroless Ni Handle: SUM23 / Electroless Ni Spring: SUS304-WPB Ring: SUS316 / Electropolished Ball: SUS440C (HRC 55 or higher) Chain: SUS305 / Electropolished Mounting bracket: SUS304 / Electropolished *The length of the chain is 300mm.
Price range
Delivery Time
Model number/Brand name
LPSMC
Applications/Examples of results
For positioning, fixing, detaching, and holding of workpieces.
Detailed information
Line up（20）
| Model number | overview |
|---|---|
| LPSMC5-10 | Mounting hole diameter: φ5 Mounting length: 10mm Chain length: 300mm |
| LPSMC5-20 | Mounting hole diameter: φ5 Mounting length: 20mm Chain length: 300mm |
| LPSMC5-30 | Mounting hole diameter: φ5 Mounting length: 30mm Chain length: 300mm |
| LPSMC6-25 | Mounting hole diameter: φ6 Mounting length: 25mm Chain length: 300mm |
| LPSMC6-30 | Mounting hole diameter: φ6 Mounting length: 30mm Chain length: 300mm |
| LPSMC6-40 | Mounting hole diameter: φ6 Mounting length: 40mm Chain length: 300mm |
| LPSMC6-50 | Mounting hole diameter: φ6 Mounting length: 50mm Chain length: 300mm |
| LPSMC8-25 | Mounting hole diameter: φ8 Mounting length: 25mm Chain length: 300mm |
| LPSMC8-30 | Mounting hole diameter: φ8 Mounting length: 30mm Chain length: 300mm |
| LPSMC8-40 | Mounting hole diameter: φ8 Mounting length: 40mm Chain length: 300mm |
| LPSMC8-50 | Mounting hole diameter: φ8 Mounting length: 50mm Chain length: 300mm |
| LPSMC10-25 | Mounting hole diameter: φ10 Mounting length: 25mm Chain length: 300mm |
| LPSMC10-30 | Mounting hole diameter: φ10, mounting length: 30mm, chain length: 300mm |
| LPSMC10-40 | Mounting hole diameter: φ10 Mounting length: 40mm Chain length: 300mm |
| LPSMC10-50 | Mounting hole diameter: φ10 Mounting length: 50mm Chain length: 300mm |
| LPSMC10-60 | Mounting hole diameter: φ10 Mounting length: 60mm Chain length: 300mm |
| LPSMC12-30 | Mounting hole diameter: φ12 Mounting length: 30mm Chain length: 300mm |
| LPSMC12-40 | Mounting hole diameter: φ12 Mounting length: 40mm Chain length: 300mm |
| LPSMC12-50 | Mounting hole diameter: φ12 Mounting length: 50mm Chain length: 300mm |
| LPSMC12-60 | Mounting hole diameter: φ12 Mounting length: 60mm Chain length: 300mm |
