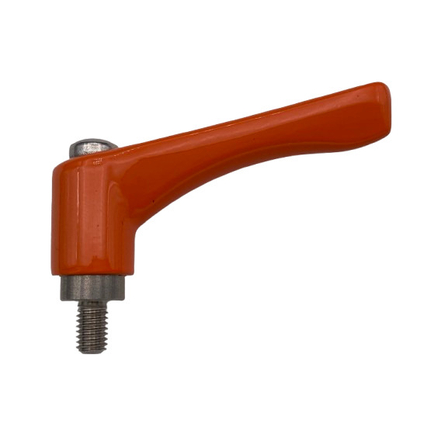

Clamp lever SUS standard male thread
This is a screw tightening and loosening clamp lever type that can be operated without tools.
The lever has an arched shape for easy gripping and is available in three colors: orange, black, and silver. After tightening, the position of the lever can be adjusted, making it effective for space-saving use. The lever is made of zinc die-cast with baked-on paint, and the screws and springs are made of stainless steel.
basic information
■Material Lever: Zinc die-cast / Powder coating Screw: SUS303 Spring: SUS304-WPB ■Lever Colors Black, Silver, Orange ■Specifications M4 ... Mounting lengths: 8mm, 12mm, 16mm, 20mm, 25mm M5 ... Mounting lengths: 8mm, 12mm, 16mm, 20mm, 25mm, 32mm M6 ... Mounting lengths: 8mm, 12mm, 16mm, 20mm, 25mm, 32mm M8 ... Mounting lengths: 16mm, 20mm, 25mm, 32mm, 40mm M10 ... Mounting lengths: 20mm, 25mm, 32mm, 40mm, 50mm
Price range
Delivery Time
Model number/Brand name
CLSS
Applications/Examples of results
Elimination of tools for bolt and screw work, improving work efficiency.
Detailed information
Line up（81）
| Model number | overview |
|---|---|
| CLSSB4-8 | Lever: Black, Screw part: M4×0.7, Installation length: 8mm |
| CLSSS4-8 | Lever: Silver, Screw part: M4×0.7, Mounting length: 8mm |
| CLSSO4-8 | Lever: Orange, Screw part: M4×0.7, Mounting length: 8mm |
| CLSSB4-12 | Lever: Black, Screw part: M4×0.7, Installation length: 12mm |
| CLSSS4-12 | Lever: Silver, Screw part: M4×0.7, Installation length: 12mm |
| CLSSO4-12 | Lever: Orange, Screw part: M4×0.7, Installation length: 12mm |
| CLSSB4-16 | Lever: Black, Screw part: M4×0.7, Installation length: 16mm |
| CLSSS4-16 | Lever: Silver, Screw part: M4×0.7, Installation length: 16mm |
| CLSSO4-16 | Lever: Orange, Screw part: M4×0.7, Installation length: 16mm |
| CLSSB4-20 | Lever: Black, Screw part: M4×0.7, Mounting length: 20mm |
| CLSSS4-20 | Lever: Silver, Screw part: M4×0.7, Installation length: 20mm |
| CLSSO4-20 | Lever: Orange, Screw part: M4×0.7, Installation length: 20mm |
| CLSSB4-25 | Lever: Black, Screw part: M4×0.7, Installation length: 25mm |
| CLSSS4-25 | Lever: Silver, Screw part: M4×0.7, Mounting length: 25mm |
| CLSSO4-25 | Lever: Orange, Screw part: M4×0.7, Installation length: 25mm |
| CLSSB5-8 | Lever: Black, Screw part: M5×0.8, Installation length: 8mm |
| CLSSS5-8 | Lever: Silver, Screw part: M5×0.8, Installation length: 8mm |
| CLSSO5-8 | Lever: Orange, Screw part: M5×0.8, Installation length: 8mm |
| CLSSB5-12 | Lever: Black, Screw part: M5×0.8, Installation length: 12mm |
| CLSSS5-12 | Lever: Silver, Screw part: M5×0.8, Installation length: 12mm |
| CLSSO5-12 | Lever: Orange, Screw part: M5×0.8, Installation length: 12mm |
| CLSSB5-16 | Lever: Black, Screw part: M5×0.8, Installation length: 16mm |
| CLSSS5-16 | Lever: Silver, Screw part: M5×0.8, Installation length: 16mm |
| CLSSO5-16 | Lever: Orange, Screw part: M5×0.8, Installation length: 16mm |
| CLSSB5-20 | Lever: Black, Screw part: M5×0.8, Installation length: 20mm |
| CLSSS5-20 | Lever: Silver, Screw part: M5×0.8, Installation length: 20mm |
| CLSSO5-20 | Lever: Orange, Screw part: M5×0.8, Mounting length: 20mm |
| CLSSB5-25 | Lever: Black, Screw part: M5×0.8, Installation length: 25mm |
| CLSSS5-25 | Lever: Silver, Screw part: M5×0.8, Mounting length: 25mm |
| CLSSO5-25 | Lever: Orange, Screw part: M5×0.8, Installation length: 25mm |
| CLSSB5-32 | Lever: Black, Screw part: M5×0.8, Installation length: 32mm |
| CLSSS5-32 | Lever: Silver, Screw part: M5×0.8, Installation length: 32mm |
| CLSSO5-32 | Lever: Orange, Screw part: M5×0.8, Installation length: 32mm |
| CLSSB6-8 | Lever: Black, Screw part: M6×1.0, Installation length: 8mm |
| CLSSS6-8 | Lever: Silver, Screw part: M6×1.0, Installation length: 8mm |
| CLSSO6-8 | Lever: Orange, Screw part: M6×1.0, Installation length: 8mm |
| CLSSB6-12 | Lever: Black, Screw part: M6×1.0, Mounting length: 12mm |
| CLSSS6-12 | Lever: Silver, Screw part: M6×1.0, Mounting length: 12mm |
| CLSSO6-12 | Lever: Orange, Screw part: M6×1.0, Installation length: 12mm |
| CLSSB6-16 | Lever: Black, Screw part: M6×1.0, Installation length: 16mm |
| CLSSS6-16 | Lever: Silver, Screw part: M6×1.0, Mounting length: 16mm |
| CLSSO6-16 | Lever: Orange, Screw part: M6×1.0, Installation length: 16mm |
| CLSSB6-20 | Lever: Black, Screw part: M6×1.0, Installation length: 20mm |
| CLSSS6-20 | Lever: Silver, Screw part: M6×1.0, Installation length: 20mm |
| CLSSO6-20 | Lever: Orange, Screw part: M6×1.0, Installation length: 20mm |
| CLSSB6-25 | Lever: Black, Screw part: M6×1.0, Mounting length: 25mm |
| CLSSS6-25 | Lever: Silver, Screw part: M6×1.0, Installation length: 25mm |
| CLSSO6-25 | Lever: Orange, Screw part: M6×1.0, Installation length: 25mm |
| CLSSB6-32 | Lever: Black, Screw part: M6×1.0, Installation length: 32mm |
| CLSSS6-32 | Lever: Silver, Screw part: M6×1.0, Installation length: 32mm |
| CLSSO6-32 | Lever: Orange, Screw part: M6×1.0, Installation length: 32mm |
| CLSSB8-16 | Lever: Black, Screw part: M8×1.25, Installation length: 16mm |
| CLSSS8-16 | Lever: Silver, Screw part: M8×1.25, Mounting length: 16mm |
| CLSSO8-16 | Lever: Orange, Screw part: M8×1.25, Installation length: 16mm |
| CLSSB8-20 | Lever: Black, Screw part: M8×1.25, Mounting length: 20mm |
| CLSSS8-20 | Lever: Silver, Screw part: M8×1.25, Mounting length: 20mm |
| CLSSO8-20 | Lever: Orange, Screw part: M8×1.25, Installation length: 20mm |
| CLSSB8-25 | Lever: Black, Screw part: M8×1.25, Mounting length: 25mm |
| CLSSS8-25 | Lever: Silver, Screw part: M8×1.25, Installation length: 25mm |
| CLSSO8-25 | Lever: Orange, Screw part: M8×1.25, Installation length: 25mm |
| CLSSB8-32 | Lever: Black, Screw part: M8×1.25, Installation length: 32mm |
| CLSSS8-32 | Lever: Silver, Screw part: M8×1.25, Installation length: 32mm |
| CLSSO8-32 | Lever: Orange, Screw part: M8×1.25, Installation length: 32mm |
| CLSSB8-40 | Lever: Black, Screw part: M8×1.25, Installation length: 40mm |
| CLSSS8-40 | Lever: Silver, Screw part: M8×1.25, Installation length: 40mm |
| CLSSO8-40 | Lever: Orange, Screw part: M8×1.25, Installation length: 40mm |
| CLSSB10-20 | Lever: Black, Screw part: M10×1.5, Mounting length: 20mm |
| CLSSS10-20 | Lever: Silver, Screw part: M10×1.5, Mounting length: 20mm |
| CLSSO10-20 | Lever: Orange, Screw part: M10×1.5, Mounting length: 20mm |
| CLSSB10-25 | Lever: Black, Screw part: M10×1.5, Installation length: 25mm |
| CLSSS10-25 | Lever: Silver, Screw part: M10×1.5, Installation length: 25mm |
| CLSSO10-25 | Lever: Orange, Screw part: M10×1.5, Installation length: 25mm |
| CLSSB10-32 | Lever: Black, Screw part: M10×1.5, Installation length: 32mm |
| CLSSS10-32 | Lever: Silver, Screw part: M10×1.5, Installation length: 32mm |
| CLSSO10-32 | Lever: Orange, Screw part: M10×1.5, Installation length: 32mm |
| CLSSB10-40 | Lever: Black, Screw part: M10×1.5, Installation length: 40mm |
| CLSSS10-40 | Lever: Silver, Screw part: M10×1.5, Mounting length: 40mm |
| CLSSO10-40 | Lever: Orange, Screw part: M10×1.5, Installation length: 40mm |
| CLSSB10-50 | Lever: Black, Screw part: M10×1.5, Installation length: 50mm |
| CLSSS10-50 | Lever: Silver, Screw part: M10×1.5, Installation length: 50mm |
| CLSSO10-50 | Lever: Orange, Screw part: M10×1.5, Installation length: 50mm |
