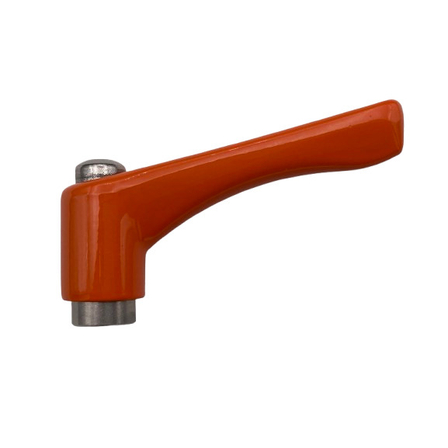

Clamp lever SUS standard male thread
This is a screw tightening and loosening clamp lever type with a female thread that does not require tools.
The lever has an arched shape for easy gripping and is available in three colors: orange, black, and silver. After tightening, the position of the lever can be adjusted, making it effective for space-saving use. The lever is made of zinc die-cast with baked-on paint, and the screws and springs are made of stainless steel.
basic information
■Material Lever: Zinc die-cast / Powder coating Screw: SUS303 Spring: SUS304-WPB ■Lever Colors Black, Silver, Orange ■Specifications M4 ... Mounting length 7mm M5 ... Mounting length 7mm M6 ... Mounting length 7mm M8 ... Mounting length 10mm M10 ... Mounting length 14mm
Price range
Delivery Time
Model number/Brand name
CLSSF
Applications/Examples of results
Elimination of tools for bolt and screw work, improving work efficiency.
Detailed information
Line up（15）
| Model number | overview |
|---|---|
| CLSSFB4 | Lever: Black, Screw part: M4×0.7, Installation length: 7mm |
| CLSSFS4 | Lever: Silver, Screw part: M4×0.7, Installation length: 7mm |
| CLSSFO4 | Lever: Orange, Screw part: M4×0.7, Mounting length: 7mm |
| CLSSFB5 | Lever: Black, Screw part: M5×0.8, Installation length: 7mm |
| CLSSFS5 | Lever: Silver, Screw part: M5×0.8, Installation length: 7mm |
| CLSSFO5 | Lever: Orange, Screw part: M5×0.8, Installation length: 7mm |
| CLSSFB6 | Lever: Black, Screw part: M6×1.0, Installation length: 7mm |
| CLSSFS6 | Lever: Silver, Screw part: M6×1.0, Installation length: 7mm |
| CLSSFO6 | Lever: Orange, Screw part: M6×1.0, Installation length: 7mm |
| CLSSFB8 | Lever: Black, Screw part: M8×1.25, Installation length: 10mm |
| CLSSFS8 | Lever: Silver, Screw part: M8×1.25, Installation length: 10mm |
| CLSSFO8 | Lever: Orange, Screw part: M8×1.25, Installation length: 10mm |
| CLSSFB10 | Lever: Black, Screw part: M10×1.5, Mounting length: 14mm |
| CLSSFS10 | Lever: Silver, Screw part: M10×1.5, Mounting length: 14mm |
| CLSSFO10 | Lever: Orange, Screw part: M10×1.5, Installation length: 14mm |
