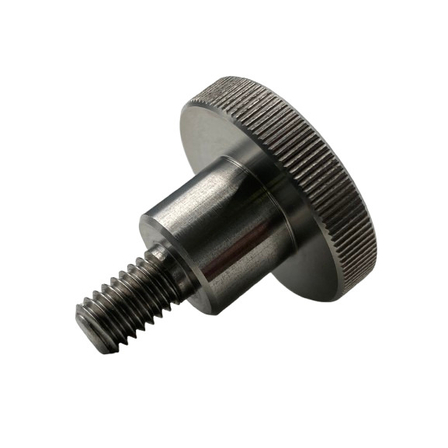

Knurled knob with stepped male thread SUS
This is a stepped stainless steel knurled knob with a male thread type. Due to its thickness, it can be firmly turned with force.
The flat surface with a knurled shape is also a characteristic that makes it less slippery. It is effective in improving work efficiency without the need for tools such as hex wrenches or wrenches.
basic information
Material: SUS303 Specification: Standard grain, hairline finish Shape: Step-type male thread
Price range
Delivery Time
Model number/Brand name
RNSSM
Applications/Examples of results
To eliminate the need for tools in tightening and removal tasks, and to improve work efficiency.
Detailed information
Line up（13）
| Model number | overview |
|---|---|
| RNSSM3-6 | M3×P0.5 Screw length 6mm |
| RNSSM3-10 | M3×P0.5 Screw length 10mm |
| RNSSM3-16 | M3×P0.5 Screw length 16mm |
| RNSSM4-6 | M4×P0.7 Screw length 6mm |
| RNSSM4-10 | M4×P0.7 screw length 10mm |
| RNSSM4-16 | M4×P0.7 Screw length 16mm |
| RNSSM5-10 | M5×P0.8 Screw length 10mm |
| RNSSM5-16 | M5×P0.8 Screw length 16mm |
| RNSSM5-20 | M5×P0.8 Screw length 20mm |
| RNSSM6-10 | M6×P1.0 screw length 10mm |
| RNSSM6-16 | M6×P1.0 screw length 16mm |
| RNSSM6-20 | M6×P1.0 screw length 20mm |
| RNSSM6-25 | M6×P1.0 screw length 25mm |
catalog（1）
Download All Catalogs
