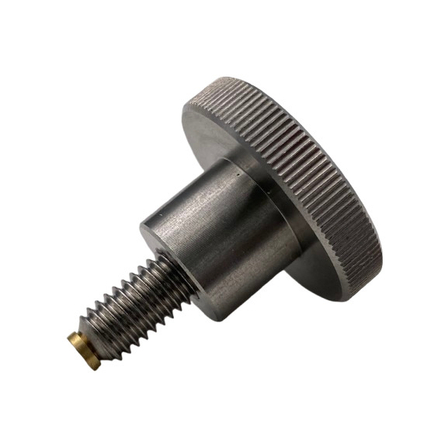

Knurled knob with stepped SUS and brass pad
The stepped stainless steel knurled knob comes with a brass pad at the tip.
There is no worry about scratching the other side because it is pressed with a brass pad. The flat fish knurling shape makes it difficult to slip and easy to turn. It is also effective in improving work efficiency without the need for tools like hex wrenches or spanners.
basic information
■Material Main body: SUS303 Screw: Equivalent to SUS304 Pad: C3604BD ■Specifications Step-type male thread
Price range
Delivery Time
Model number/Brand name
RNSSC
Applications/Examples of results
To eliminate the need for tools in tightening and removal tasks, and to improve work efficiency.
Detailed information
Line up（8）
| Model number | overview |
|---|---|
| RNSSC3-5 | M3×P0.5 Screw length 5mm |
| RNSSC3-9 | M3×P0.5 Screw length 9mm |
| RNSSC4-7 | M4×P0.7 Screw length 7mm |
| RNSSC4-11 | M4×P0.7 Screw length 11mm |
| RNSSC5-9 | M5×P0.8 Screw length 9mm |
| RNSSC5-14 | M5×P0.8 Screw length 14mm |
| RNSSC6-11 | M6×P1.0 screw length 11mm |
| RNSSC6-16 | M6×P1.0 screw length 16mm |
