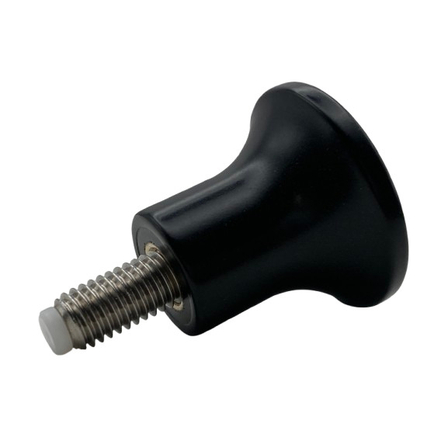

Mushroom knob bolt with SUS resin pad
This is a mushroom-shaped knob bolt that combines ease of grip and design, featuring a resin pad at the tip.
When tightened, the resin pad can contact the counterpart and secure it in place. The screw is made of stainless steel and has no incomplete threaded sections, allowing for installation up to the end face. Its smooth curved shape makes it difficult for dirt to accumulate, and it is also effective as a decorative knob.
basic information
<Material> Main body: Phenolic resin (black) Fittings: Brass Screws: Equivalent to SUS304 Tip: POM (white) Standard: Metric coarse <Specifications> M5 Screw length 9mm Knob diameter 17mm M5 Screw length 14mm Knob diameter 17mm M6 Screw length 7mm Knob diameter 21mm M6 Screw length 12mm Knob diameter 21mm M6 Screw length 17mm Knob diameter 21mm M6 Screw length 7mm Knob diameter 25mm M6 Screw length 12mm Knob diameter 25mm M6 Screw length 17mm Knob diameter 25mm M8 Screw length 12mm Knob diameter 33mm M8 Screw length 17mm Knob diameter 33mm M8 Screw length 27mm Knob diameter 33mm
Price range
Delivery Time
Model number/Brand name
MNBP
Applications/Examples of results
For holding and securing work machines, office equipment, OA equipment, various industrial machinery, tools, etc.
Detailed information
Line up（11）
| Model number | overview |
|---|---|
| MNBP5-9 | M5 screw length 9mm, knob diameter 17mm |
| MNBP5-14 | M5 screw length 14mm, knob diameter 17mm |
| MNBP6-7A | M6 screw length 7mm, knob diameter 21mm |
| MNBP6-12A | M6 screw length 12mm, knob diameter 21mm |
| MNBP6-17A | M6 screw length 17mm, knob diameter 21mm |
| MNBP6-7B | M6 screw length 7mm, knob diameter 25mm |
| MNBP6-12B | M6 screw length 12mm, knob diameter 25mm |
| MNBP6-17B | M6 screw length 17mm, knob diameter 25mm |
| MNBP8-12 | M8 screw length 12mm knob diameter 33mm |
| MNBP8-17 | M8 screw length 17mm, knob diameter 33mm |
| MNBP8-27 | M8 screw length 27mm, knob diameter 33mm |
