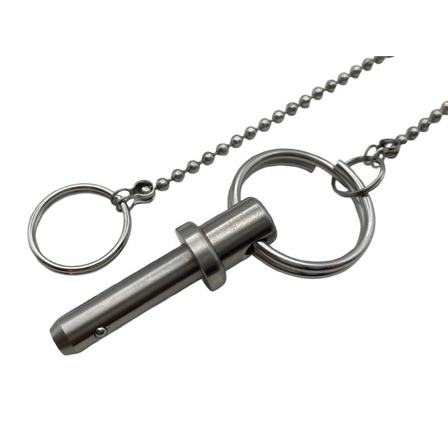

Ball lock pin with ultra-low head and anti-fall chain attached.
This is a ball lock pin with an extremely low head type that allows for easy positioning, securing, and detaching of workpieces.
After installation, removing the ring section results in a low-profile design, allowing for space-saving and compact use. This product cannot be pulled out without screws, making it effective for preventing tampering. It comes with a ball chain and ring, which are also effective for preventing loss. This product is made entirely of stainless steel.
basic information
■Material Main body: SUS303 Handle: SUS303 Spring: SUS304-WPB Ring: SUS316 / Electropolished Ball: SUS440C (HRC55 or higher) Screw: Equivalent to SUS304 Chain: SUS305 / Electropolished Mounting bracket: SUS304 / Electropolished *The length of the chain is 300mm.
Price range
Delivery Time
Model number/Brand name
LPSLC
Applications/Examples of results
For substituting bolts and rivets, positioning and fixing workpieces, detaching, and holding, etc.
Detailed information
Line up（25）
| Model number | overview |
|---|---|
| LPSLC5-10 | Shaft diameter φ5mm, mounting length 10mm. |
| LPSLC5-15 | Shaft diameter φ5mm, installation length 15mm. |
| LPSLC5-20 | Shaft diameter φ5mm, installation length 20mm. |
| LPSLC5-25 | Shaft diameter φ5mm, installation length 25mm. |
| LPSLC5-30 | Shaft diameter φ5mm, installation length 30mm. |
| LPSLC6-10 | Shaft diameter φ6mm, installation length 10mm. |
| LPSLC6-15 | Shaft diameter φ6mm, installation length 15mm. |
| LPSLC6-20 | Shaft diameter φ6mm, installation length 20mm. |
| LPSLC6-25 | Shaft diameter φ6mm, installation length 25mm. |
| LPSLC6-30 | Shaft diameter φ6mm, installation length 30mm. |
| LPSLC8-10 | Shaft diameter φ8mm, installation length 10mm. |
| LPSLC8-15 | Shaft diameter φ8mm, installation length 15mm. |
| LPSLC8-20 | Shaft diameter φ8mm, installation length 20mm. |
| LPSLC8-25 | Shaft diameter φ8mm, installation length 25mm. |
| LPSLC8-30 | Shaft diameter φ8mm, installation length 30mm. |
| LPSLC10-10 | Shaft diameter φ10mm, installation length 10mm. |
| LPSLC10-20 | Shaft diameter φ10mm, installation length 20mm. |
| LPSLC10-30 | Shaft diameter φ10mm, installation length 30mm. |
| LPSLC10-40 | Shaft diameter φ10mm, installation length 40mm. |
| LPSLC10-50 | Shaft diameter φ10mm, installation length 50mm. |
| LPSLC12-10 | Shaft diameter φ12mm, installation length 10mm. |
| LPSLC12-20 | Shaft diameter φ12mm, installation length 20mm. |
| LPSLC12-30 | Shaft diameter φ12mm, installation length 30mm. |
| LPSLC12-40 | Shaft diameter φ12mm, installation length 40mm. |
| LPSLC12-50 | Shaft diameter φ12mm, installation length 50mm. |
