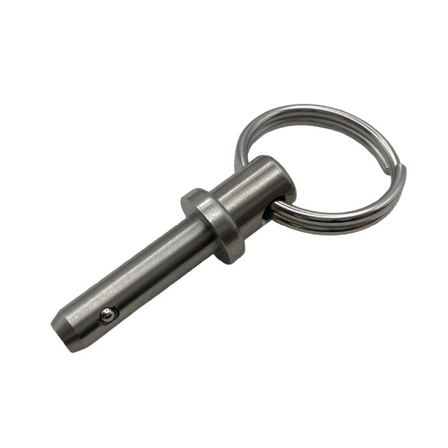

Ball lock pin, ultra-low head type
This is a ball lock pin with an extremely low head type that allows for easy positioning, fixing, and detachment of workpieces.
After installation, removing the ring part reduces the height, allowing for space-saving and compact use. This product cannot be pulled out without screws, making it effective for preventing tampering. Due to its short installation length, it is also effective for securing thin plates (flat bars). This product is made of all stainless steel.
basic information
■Material Main body: SUS303 Handle: SUS303 Spring: SUS304-WPB Ring: SUS316 / Electropolished Ball: SUS440C (HRC 55 or higher) Screw: Equivalent to SUS304
Price range
Delivery Time
Model number/Brand name
LPSLD
Applications/Examples of results
For substituting bolts and rivets, positioning and fixing workpieces, detaching, and holding, etc.
Detailed information
Line up（25）
| Model number | overview |
|---|---|
| LPSLD5-10 | Shaft diameter φ5mm, installation length 10mm. |
| LPSLD5-15 | Shaft diameter φ5mm, installation length 15mm. |
| LPSLD5-20 | Shaft diameter φ5mm, installation length 20mm. |
| LPSLD5-25 | Shaft diameter φ5mm, installation length 25mm. |
| LPSLD5-30 | Shaft diameter φ5mm, installation length 30mm. |
| LPSLD6-10 | Shaft diameter φ6mm, installation length 10mm. |
| LPSLD6-15 | Shaft diameter φ6mm, installation length 15mm. |
| LPSLD6-20 | Shaft diameter φ6mm, installation length 20mm. |
| LPSLD6-25 | Shaft diameter φ6mm, installation length 25mm. |
| LPSLD6-30 | Shaft diameter φ6mm, installation length 30mm. |
| LPSLD8-10 | Shaft diameter φ8mm, installation length 10mm. |
| LPSLD8-15 | Shaft diameter φ8mm, installation length 15mm. |
| LPSLD8-20 | Shaft diameter φ8mm, installation length 20mm. |
| LPSLD8-25 | Shaft diameter φ8mm, installation length 25mm. |
| LPSLD8-30 | Shaft diameter φ8mm, installation length 30mm. |
| LPSLD10-10 | Shaft diameter φ10mm, installation length 10mm. |
| LPSLD10-20 | Shaft diameter φ10mm, installation length 20mm. |
| LPSLD10-30 | Shaft diameter φ10mm, installation length 30mm. |
| LPSLD10-40 | Shaft diameter φ10mm, installation length 40mm. |
| LPSLD10-50 | Shaft diameter φ10mm, mounting length 50mm. |
| LPSLD12-10 | Shaft diameter φ12mm, installation length 10mm. |
| LPSLD12-20 | Shaft diameter φ12mm, installation length 20mm. |
| LPSLD12-30 | Shaft diameter φ12mm, installation length 30mm. |
| LPSLD12-40 | Shaft diameter φ12mm, installation length 40mm. |
| LPSLD12-50 | Shaft diameter φ12mm, installation length 50mm. |
