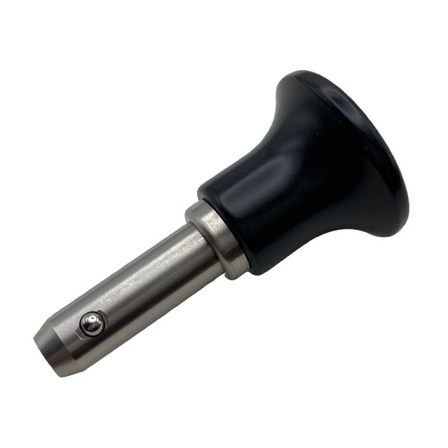

Ball lock pin SUS knob type
This is a knob type ball lock pin that allows for easy positioning, securing, and detaching of workpieces.
We have adopted a phenolic resin knob that combines ease of grip and design. It can be easily inserted and removed, making it user-friendly for anyone. Its short installation length is also effective for securing thin plates (flat bars) and similar materials.
basic information
■Material Main body: SUS303 Head (main body): Phenolic resin Head (fittings): Brass Spring: SUS304-WPB Ball: SUS440C (HRC 55 or higher) Screw: Equivalent to SUS304
Price range
Delivery Time
Model number/Brand name
LPSN
Applications/Examples of results
For substituting bolts and rivets, positioning and fixing workpieces, detaching, and holding, etc.
Detailed information
Line up（25）
| Model number | overview |
|---|---|
| LPSN5-10 | Mounting diameter 5mm, mounting length 10mm. |
| LPSN5-15 | Mounting diameter 5mm, mounting length 15mm. |
| LPSN5-20 | Mounting diameter 5mm, mounting length 20mm. |
| LPSN5-25 | Mounting diameter 5mm, mounting length 25mm. |
| LPSN5-30 | Mounting diameter 5mm, mounting length 30mm. |
| LPSN6-10 | Mounting diameter 6mm, mounting length 10mm. |
| LPSN6-15 | Mounting diameter 6mm, mounting length 15mm. |
| LPSN6-20 | Mounting diameter 6mm, mounting length 20mm. |
| LPSN6-25 | Mounting diameter 6mm, mounting length 25mm. |
| LPSN6-30 | Mounting diameter 6mm, mounting length 30mm. |
| LPSN8-10 | Mounting diameter 8mm, mounting length 10mm. |
| LPSN8-15 | Mounting diameter 8mm, mounting length 15mm. |
| LPSN8-20 | Mounting diameter 8mm, mounting length 20mm. |
| LPSN8-25 | Mounting diameter 8mm, mounting length 25mm. |
| LPSN8-30 | Mounting diameter 8mm, mounting length 30mm. |
| LPSN10-10 | Mounting diameter 10mm, mounting length 10mm. |
| LPSN10-20 | Mounting diameter 10mm, mounting length 20mm. |
| LPSN10-30 | Mounting diameter 10mm, mounting length 30mm. |
| LPSN10-40 | Mounting diameter 10mm, mounting length 40mm. |
| LPSN10-50 | Mounting diameter 10mm, mounting length 50mm. |
| LPSN12-10 | Mounting diameter 12mm, mounting length 10mm. |
| LPSN12-20 | Mounting diameter 12mm, mounting length 20mm. |
| LPSN12-30 | Mounting diameter 12mm, mounting length 30mm. |
| LPSN12-40 | Mounting diameter 12mm, mounting length 40mm. |
| LPSN12-50 | Mounting diameter 12mm, mounting length 50mm. |
