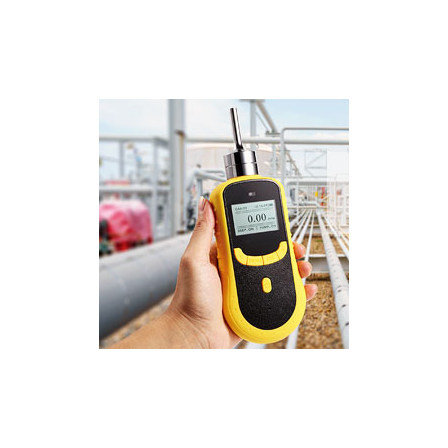

Hydrogen fluoride gas detector with data logger MI1HL3111-HF-R
The MI1HL3111-HF-R is a hydrogen fluoride detector that can measure high concentrations of hydrogen fluoride up to 10 ppm.
Due to the built-in suction pump, it can accommodate hydrogen fluoride concentration measurements in narrow spaces by connecting a hose to the nozzle. Additionally, it features an alarm function that emits an electronic sound at two specified levels of hydrogen fluoride concentration, a zero calibration function, and a backlight display function that allows measurement values to be seen in dark places.
basic information
■Specifications Model Number: MI1HL3111-HF-R Measurement Range: 0.00 to 10.00 ppm Resolution: 0.01 ppm Functions/Display: Zero calibration, dual-stage alarm Data Logger (100,000 memory) Backlit display, etc. Logging Interval: 5, 10, 20, 30 seconds 1, 2, 5, 10, 20, 30 minutes 1 hour selection Measurement Reproducibility: ±2% (full scale) / 6 months Sensor: Electrochemical Battery Used: 3.6 V lithium polymer rechargeable battery Battery Life: Approximately 12 hours (charging 4 to 6 hours) Operating Temperature: -20 to +50°C Operating Humidity: 0 to 95% RH (no condensation) Size/Weight: 205×75×32 mm Approximately 300 g Accessories: Operating manual, charging AC adapter Communication software, USB cable Carrying case
Price range
Delivery Time
Applications/Examples of results
The MI1HL3111-HF-R is equipped with a data logger function that has a memory capacity of 100,000, allowing it to record the fluoride concentration during measurements along with the date and time. The data stored in the device can be saved in Excel format on a computer using the included communication software and USB cable. It will be delivered with a calibration certificate.
