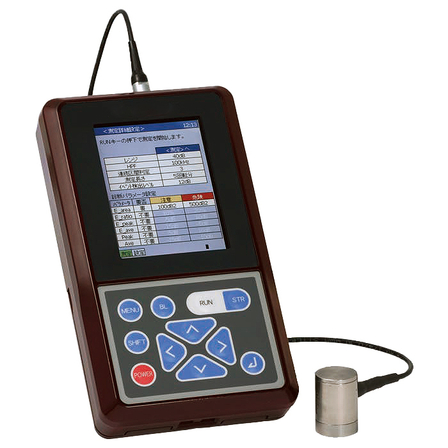

Portable Low-Speed Bearing Diagnostic Measuring Instrument / Model Number M161MK-LS671J
Realization of bearing diagnosis at ultra-low speeds of 1 to 150 rpm.
The diagnosis of low-speed rotating bearings, which has been considered difficult until now, extracts and indexes AE (Acoustic Emission) signals during bearing abnormalities through newly developed unique signal processing, displaying the diagnosis results on the spot.
basic information
■Specifications Model Number: M161MK-LS671J AE Measurement Section: Input Signal AE Signal 1 Channel (Input Impedance 75Ω) Measurement Frequency Range: Measurement Mode 100kHz: 100k to 500kHz Measurement Mode 200kHz: 200k to 500kHz Measurement Range: +40dB Input Range: 300mVp-p FFT Frequency Resolution: 1/400 of the Analysis Frequency Range A/D Conversion: 16bit/w Anti-Aliasing Filter: -25dB (TYP) or more at 1.5 times the maximum measurement frequency Dynamic Range: 50dB or more AE Output Section: Voltage: ±5V (Through output of AE sensor signal) Impedance: 51Ω Software Function Section: Measurement: Measurement display, detailed measurement settings Display: Measurement result display, measurement waveform display, TOP 10 display, waveform zoom display Display: Color LCD (240×320 dots) Main Power Supply: Rechargeable battery pack (Lithium-ion rechargeable battery) AC Power Adapter (optional) Continuous Operating Time: 3 hours or more (when using the rechargeable battery pack, with backlight off) Battery Charging Time: Approximately 3 hours External Memory: CF Card
Price range
Delivery Time
Applications/Examples of results
●Easy Operation Simply input the rotational speed of the measurement target and start the measurement to display the results (diagnostic parameters and diagnostic results) on the spot. ●Newly Developed Diagnostic Logic Using the manufacturer's proprietary signal processing and diagnostic logic, extract AE during bearing abnormalities.
