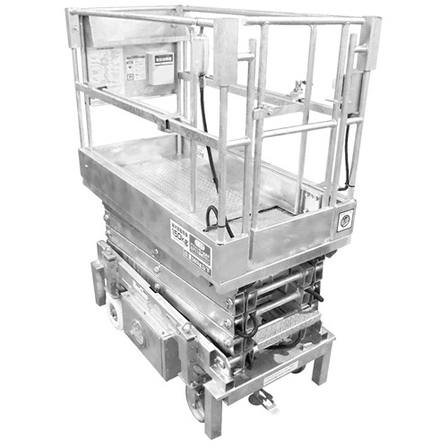

Mobile Elevated Work Platform / Model Number MC71S-4600VESLS
The outriggers for fall prevention automatically ground themselves in conjunction with the ascent.
■Features ● By inserting pipes or similar objects for head protection, it serves as a pinch prevention function. Patent registered. (The product does not include pipes.)
basic information
■Specifications Maximum working height: Approximately 4,600mm (0 to -20mm) Minimum working height: Approximately 960mm Table dimensions: Width 750mm Length 1,437.5mm (Extended slide length 2,105mm) Height 1,890mm Outrigger extension: 1,310mm Maximum load capacity (when slide is retracted): 150kg Load capacity (at the tip when slide is extended): 100kg Weight: 570kg or less Power source: Battery 12V 65Ah Number of lifts (fully charged): Approximately 50 times Lifting device: Hydraulic package DC12V 800W rated for 30 seconds Charging time: Approximately 12 hours
Price range
Delivery Time
Applications/Examples of results
●Maximum load capacity: 150kg ●Body made of rust-resistant hot-dip galvanized material ●No specific self-inspection or special training required
