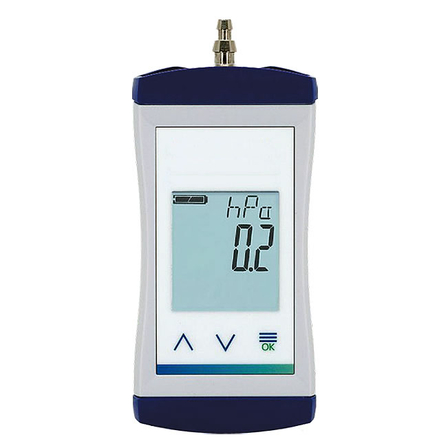

Compact Vacuum Absolute Pressure Gauge / Model Number M3272VAP240-1-UT6
High-resolution and high-precision measurement specifications with excellent responsiveness.
● Backlit 3-level display with button operation for upside-down display ● Replaceable universal connection pressure port ● HOLD/Min/Max/Average value display, auto power-off function ● Functional case design, waterproof housing, long battery life
basic information
■Specifications Model Number: M3272VAP240-1-*** M3272VAP240-2-*** Measurement Specifications Measurement Element: Absolute Pressure Pressure Connection: 1 Tube Connection Port (Interchangeable with Universal Port G1/8) Measurement Range: 0.0 to 1700.0 hPa 0 to 14000 hPa Resolution: 0.1 hPa 1 hPa Measurement Cycle: Low Speed: 2.5 times/second, High Speed: 25 times/second Typical Accuracy: ±2 hPa (at 5 to 30°C) - With VAC Option: ±1 hPa (0 to 20 hPa Absolute Pressure) ±0.02% FS, ±0.1% rdg (at 25°C) Maximum Error: ±1.25% FS ±0.02% FS, ±0.5% rdg Maximum Load: 3000 hPa Absolute Pressure 20000 hPa Absolute Pressure General Specifications Display: 3-Stage LCD, Battery Level Display, Backlight Function Upside Down Display via Button Push Standard Functions: Max/Min Values, Hold, Auto Power Off Special Functions: Tare (Net Weight) Function, Averaging at 2 seconds/5 seconds/10 seconds Intervals Calibration: Zero Point, Slope Power Supply: 2 AA Alkaline Batteries (Standard Included) Current Consumption: Approximately 1 mA, 3 mA when Backlight is Used Approximately 0.6 mA
Price range
Delivery Time
Applications/Examples of results
The M3272VAP240 series is a vacuum/absolute pressure gauge developed with a focus on essential functions in measurement technology, equipped with high-quality sensors that are core to the product. The M3272VAP240-1-*** is suitable for monitoring in vacuum packaging machine testing and other vacuum processes. The optional exhaust housing vent allows for rapid measurements in a vacuum. The M3272VAP240-2-*** covers a pressure range up to 14000 hPa with a high resolution of 1 hPa, making it useful for all absolute pressure measurements. Both models are equipped with a Tare function, allowing them to be used as relative pressure gauges in addition to absolute pressure measurements. Additionally, both models feature a G1/8 connection port, allowing for changes to a wide variety of connection connectors.
