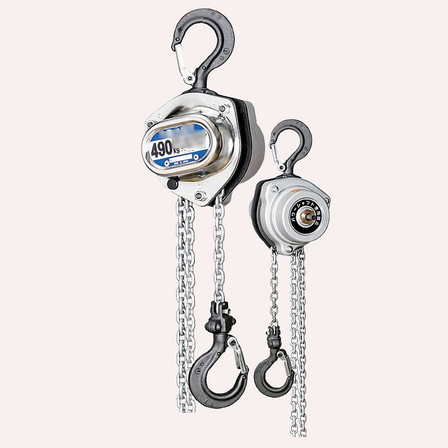

Chain block charging driver connection type / Model number M73HMF-49Z
You can easily perform the winding and unwinding tasks using an electric screwdriver without using a hand chain.
If you do not use an electric screwdriver, you can also operate it with a manual handle. *Please prepare the electric screwdriver yourself.
basic information
■Specifications Model Number: M73HMF-49Z Type of Electric Driver: 18V or higher Electric Driver (m/min): Lifting Speed during Use: 1.7 Standard Lifting Height (mm): 5 Minimum Distance between Hooks (mm): 275 Load Chain Wire Diameter × Pitch (mm): 4.3×12 Weight (kg): 5.3 Rated Load (kg): 490
Price range
Delivery Time
Applications/Examples of results
Note 1) Power shafts cannot be used. Note 2) The winding speed when using the direct connection method is an approximate speed of 1300 revolutions per minute for the electric driver. Note 3) Please use a rechargeable driver of 18V or higher. Note 4) Electric impact drivers and air impact drivers cannot be used. Note 5) Please prepare the electric driver yourself.
