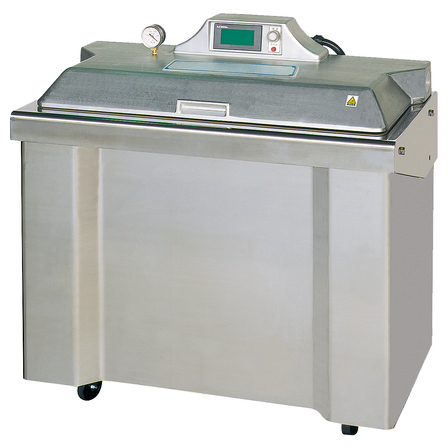

Chamber vacuum packaging machine / Model number M1030VS-7-4002F
It is equipped with a vacuum pump (with an intake filter) and can be used with a three-phase 200V power supply.
Adopts an easy-to-use touch panel. It can preset packaging conditions for 10 items. By changing the set angle, it can also accommodate liquid packaging.
basic information
■Specifications Model Number: M1030VS-7-4002F Capacity: 2-3 shots/min Seal Dimensions (Width × Length): 8 × 890mm Seal Bottom Dimensions: 340mm Vacuum Box Internal Dimensions (Width × Depth × Height): 940 × 400 × 82mm Power Supply: Three-phase AC 200V Main Unit: 4.0kW (including vacuum pump R5A-0063E) Machine Dimensions (Width × Depth × Height): 1070 × 664 × 1045mm Weight: 210kg
Price range
Delivery Time
Applications/Examples of results
- The base plate and frame are made of stainless steel, and the vacuum box uses aluminum alloy casting, which improves corrosion resistance compared to conventional machines while also achieving weight reduction. With the adoption of microcomputer control and a high-quality touch panel, it allows for the setting of various data for up to 10 items, making it easy to accommodate multi-item production. - The machine angle can be changed, making it suitable for packaging liquid products (horizontal, 10°, 20°). - The control box has been integrated and mounted on the top of the vacuum box. - The vacuum pump has been incorporated into the machine. - The heater wire has been installed on the base plate side. - The sealing method employs an impulse system. - Other features: various alarms, maintenance inspections, etc.
