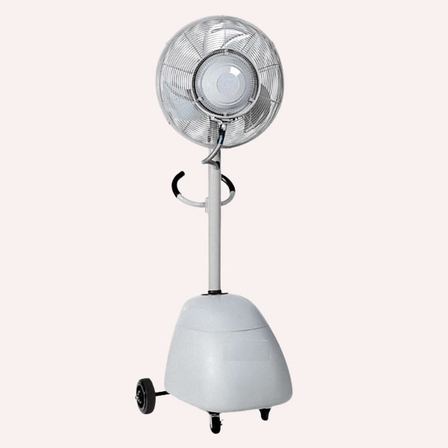

Mist fan model number M700S-2153S
A great success in heatstroke prevention, 100V Mister Donut fan.
Mist range: up to 8m Easy to use anywhere: single-phase 100V Compact and lightweight: 28kg
basic information
■Specifications Model Number: M700S-2153S Dry Weight: 28.0 Spray Amount (cc/min) 50Hz: 00～46cc 60Hz: 00～76cc Output (kW): 0.05 (Mist Motor) 0.16 (Fan Motor) Dimensions (Length × Width × Height) (mm): 625 × 680 × 1750 Wind Speed Switch: 1 (Low) 2 (Medium) 3 (High) Air Volume (m3/min) 50Hz: Approximately 102, Approximately 110, Approximately 120 60Hz: Approximately 95, Approximately 123, Approximately 135 Water Tank: Approximately 49.0 (Direct connection to water supply available) Fan Size: φ500 Swing Angle: 60° Tilt Angle: Upward 20°, Downward 5° Power Supply: Single-phase 100 Rated Power Consumption (kW): [50Hz] 0.24 / [60Hz] 0.25
Price range
Delivery Time
Applications/Examples of results
● No nozzle, so no clogging ● Simple design for easy maintenance ● Lightweight and compact for easy mobility ● Mist spray volume can be adjusted with a valve ● Equipped with a large tank for long operating times
