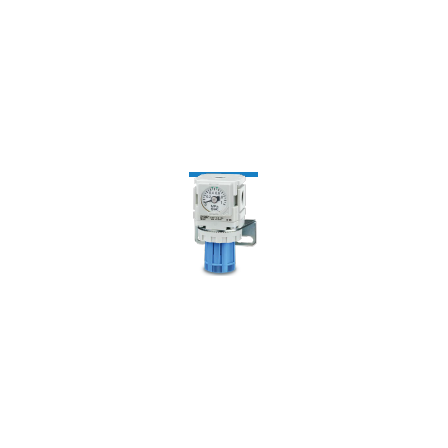

Modular Type Relief Valve 'AP20-D'
Reduction of piping labor and no need for branch piping! The shape makes it easy to grip when unlocking.
The "AP20-D" is a modular type relief valve that releases pressure above the set value to the atmosphere, maintaining the set pressure. In conventional designs, the air inlet and exhaust ports are aligned in a straight line, requiring branching pipes for connection to downstream equipment. However, by using a modular connection, we have reduced piping labor and eliminated the need for branching pipes. Additionally, you can choose from square embedded pressure gauges, round pressure gauges, and round pressure gauges with color zones, and the handle shape is designed to be easy to operate with fingers during unlocking. 【Features】 ■ Reduced piping labor ■ Selectable pressure gauges ■ Easy-to-operate handle shape *For more details, please download the PDF or feel free to contact us.
basic information
【Options】 ■Bracket ■With set nut (panel mount) ■Square embedded pressure gauge (with limit indicator) ■Round pressure gauge (with limit indicator) ■Round pressure gauge (with color zone) ■With plug (for common IN port) ■Built-in silencer ■Handle cover *For more details, please download the PDF or feel free to contact us.
Price range
Delivery Time
Applications/Examples of results
For more details, please download the PDF or feel free to contact us.
