Stainless Steel Pipe Fitting "I-fit"
Easy and reliable! The nut and ferrule are integrated, allowing for installation at two points.

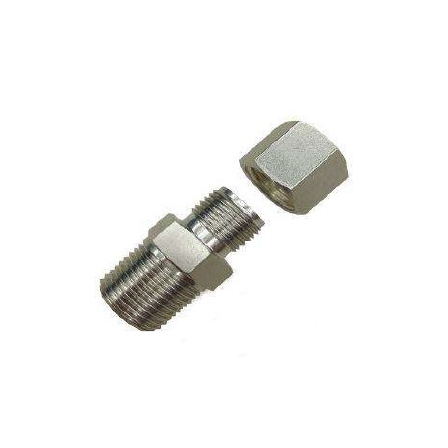

We would like to introduce our stainless steel pipe fittings, "I-fit." This product consists of two components: the main body and the nut. The ferrule is integrated with the nut, eliminating construction troubles such as dropping the ferrule or misaligning its direction. For the 3/4 and 1-inch sizes, the tightening torque is reduced by approximately 30%, making it suitable for welding-free piping installation. You can choose between the rotation management type and the tightening type. 【Features】 ■ Two-component design (the ferrule is integrated with the nut) ■ Zero construction troubles such as dropping or losing the ferrule, or misaligning its direction ■ Available in two types: rotation management type and tightening type (optional specification) ■ For 3/4 and 1-inch sizes, tightening torque is reduced by approximately 30% ■ Suitable for welding-free piping installation *For more details, please download the PDF or feel free to contact us.
basic information
【Basic Specifications】 ■ Size Series - Inches: 1/8, 1/4, 3/8, 1/2, 3/4, 1 - Millimeters: 6mm, 8mm, 10mm, 12mm, 16mm, 20mm, 22mm, 25mm ■ Rated Pressure (partial): - 21MPa (Inches: 1/8 to 1/2, Millimeters: 6 to 12) - 14MPa (Inches: 3/4, Millimeters: 16, 20, 22) - 10.5MPa (Inches: 1, Millimeters: 25) ■ Design Temperature: -100℃ to +300℃ *For more details, please download the PDF or feel free to contact us.
Price range
Delivery Time
Applications/Examples of results
For more details, please download the PDF or feel free to contact us.
