Plastic Modular Chain "WT1515VG-W Type"
The WT1510 series now features a rubber type! It reduces slipping of transported items and is suitable for inclined transport.

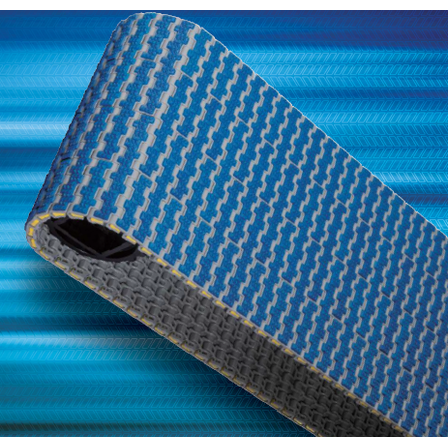

The "WT1515VG-W type" is a plastic modular chain with rubber attached to the conveying surface through two-color molding (integrated molding of different materials). In addition to the features of plastic modular chains such as "ease of maintenance" and "reliable drive," it also has characteristics from the WT1510 series, including "chain widths that can be configured in 50mm increments" and "the ability to layout nose bars in a butt joint configuration," making it possible to replace belts. By using two-color molding for the rubber on the chain's conveying surface, it becomes less likely for transported items to slip off, allowing for inclined transport at high angles. 【Features】 ■ High friction due to rubber on the conveying surface, making it less likely to slip off ■ Smooth handover to the next process is possible ■ Easy maintenance with the possibility of partial repairs *For more details, please download the PDF or feel free to contact us.
basic information
【Specifications (Excerpt)】 ■Appearance Color ・Main Body: Gray ・Rubber Part: Blue ■Maximum Allowable Tension kN/m {kgf/m}: 10.5 {1070} ■Chain Approximate Mass kg/m²: 7.8 *For more details, please download the PDF or feel free to contact us.
Price range
Delivery Time
Applications/Examples of results
【Examples of Use】 ■ Cutting out cardboard sheets ■ Transporting suitcases *For more details, please download the PDF or feel free to contact us.
