Plastic Modular Chain "WT0705-M Type"
The WT0700 series now includes a new fixed width type of 30mm!

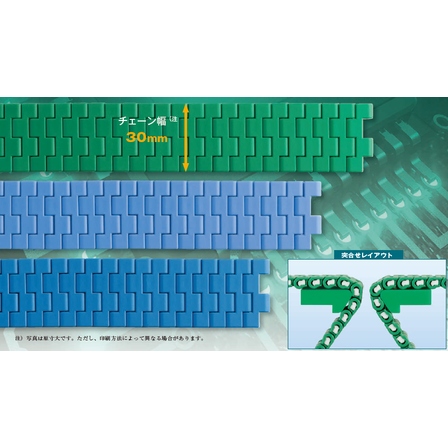

The "WT0705-M type" is a plastic modular chain that can accommodate compact conveyors and is suitable for replacement from narrow belts. By adopting a nose bar with a minimum radius of R3mm, it achieves a dead space of 19mm between conveyors, making it suitable for transporting small items. It employs a slit pin method where the plug and pin are integrated, resulting in a plug-less design that facilitates easy splicing and reduces maintenance labor. 【Features】 ■ Chain width of 30mm ■ Improved maintainability due to the slit pin method *For more details, please download the PDF or feel free to contact us.
basic information
【Specifications (Excerpt)】 ■WT0705-M30-LFG-SP ・Appearance Color: Green ・Maximum Allowable Tension kN{kgf}: 0.075{7.65} ・Chain Approximate Mass kg/m: 0.17 ・Operating Temperature Range ℃: −20～(60)80 *For more details, please download the PDF or feel free to contact us.
Price range
Delivery Time
Applications/Examples of results
For more details, please download the PDF or feel free to contact us.
