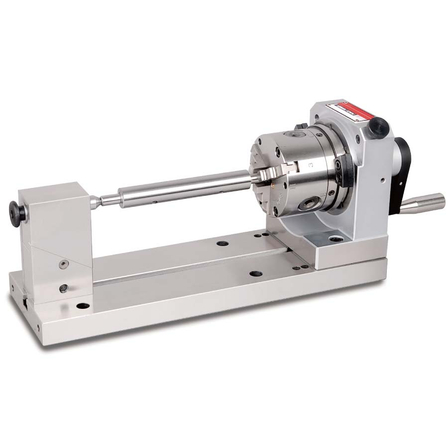

GPFC Type Center Punch Former FT-GPFC450
The center punch former is equipped with a rotation center to maintain concentricity, allowing for stable and highly accurate processing.
The gripping section allows for the quick and accurate handling of large diameter workpieces and workpieces of different sizes due to the scroll chuck.
basic information
●Chuck material: Miha Knight ●Outer diameter gripping range: φ2 to 70mm ●Inner diameter gripping range: φ24 to 64mm ●A: 675mm ●L: 0 to 450mm ●Center height (h): 85mm ●Center height (H): 109mm ●Division number and accuracy: 24 divisions, 15° ±10° ●Material: SKS3 ●Hardness: HRC 60-62° ●Roundness: 0.002mm ●Parallelism: 0.002/100mm ●Perpendicularity: 0.002/100mm ●Rotation range: 360°
Price range
P4
Delivery Time
OTHER
Model number/Brand name
FastTech FT-GPFC450
Applications/Examples of results
For the production of punches and similar items using a surface grinding machine.
