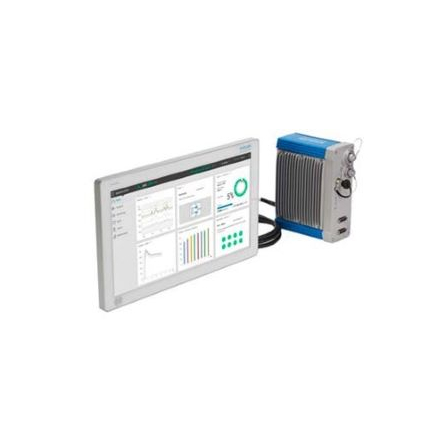

Injection Molding Internal Pressure Monitoring System ComoNeo 5887A
An innovative user interface combined with a capacitive multi-touch monitor achieves top-class efficiency and ease of use!
The Kissler ComoNeo is a process monitoring system designed to optimize, monitor, and document the plastic injection molding process. In addition to mold cavity pressure, it collects and evaluates signals from the injection molding machine (e.g., injection pressure, injection speed, screw position, etc.) as well as the mold surface temperature (connected via thermocouple temperature amplifier model 2205A...). －＊ Features ＊－＊－＊－＊－＊－＊－＊－＊－＊－＊－＊－＊－＊－ • A "dashboard" screen displays relevant processing data consolidated into one screen. • The "EO Assistant" software allows for automatic creation and definition of monitoring boxes. • Simple and efficient hardware and software design due to a process-oriented operational concept. • Rapid mold changes and short setup times are possible with the automatic mold identification feature. • The built-in cycle history (data memory) can store up to 50,000 cycles. • Key process parameters necessary for monitoring and evaluating process stability are automatically calculated.
basic information
ComoNeo is designed to meet the requirements of the plastic injection molding process and the needs of operators in the manufacturing environment. An innovative user interface combined with a capacitive multi-touch monitor achieves the highest efficiency and ease of use. Additionally, the hardware of the device is designed with functionality in mind, allowing connections to be divided into the mold side (connected to the injection molding mold) and the molding machine side (connected to the injection molding machine or robot, extraction device, and other ancillary equipment). On the mold side of a single ComoNeo device, it is possible to connect up to 32 in-mold pressure sensors and up to 16 mold surface temperature sensors (using thermocouple temperature amplifier model 2205A...). The molding machine side is equipped with 12 digital inputs and 24 digital outputs. Furthermore, ComoNeo can record and analyze four analog machine signals (screw position, injection pressure, etc.). Smooth data transfer is achieved through USB and Ethernet interfaces, allowing visualization and configuration of ComoNeo using shared notebooks, PCs, tablets, smartphones, and other devices on the network.
Price range
Delivery Time
Model number/Brand name
5887A
Applications/Examples of results
• Prototype of the product • Analysis and optimization of the injection molding process • Monitoring of the injection molding process and production process • Documentation of injection molding process and production process data
