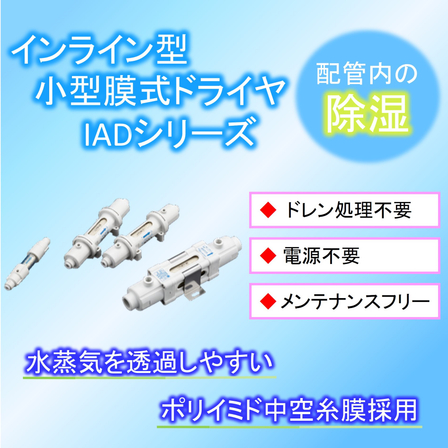

Membrane Air Dryer IAD Series for Compressed Air Dehumidification

Dehumidification filter using hollow fiber membrane method - Ideal for those who have already installed air filters and dry filters and are troubled by slight moisture intrusion.

■About this product This is a dehumidifying filter that separates water vapor from compressed air and nitrogen air. The separated water vapor is released into the atmosphere, so no drainage treatment is necessary. ■To achieve dehumidification effect 1. Increase the supply pressure on the inlet side 2. Increase the flow rate on the inlet side 3. Restrict the flow rate on the outlet side with a flow control valve 4. Increase the purge amount ■What is purging? Purging refers to the process of releasing a portion of the dry air supplied to the outlet side, along with the water vapor inside the membrane, to the atmosphere through a separate circuit from the outlet side (purge). - The greater the purge amount, the better the dehumidification performance, but the flow rate on the outlet side will decrease. - If the purge amount is small, the dehumidification performance will slightly decrease, but a larger flow rate can be maintained on the outlet side. ■Mechanism of water vapor separation The filter uses a hollow fiber membrane made of polyimide material, which allows water vapor to pass through easily. When humid air is passed through from the inlet side under pressure, the water vapor is separated. As a result, dry air is obtained on the outlet side. It cannot be used under reduced pressure, as the water vapor will not be separated and dehumidification will not occur.

Kitz Microfilter Homepage

basic information

IAD3: Supports up to 30ℓ/min, equipped with a one-touch fitting (φ4・φ6) IAD10: Supports up to 100ℓ/min, equipped with a one-touch fitting (φ6・φ8) IAD20: Supports up to 200ℓ/min, with a threaded fitting Rc3/8 - Lightweight and compact inline design - No drain processing required - Three types to choose from based on capacity (30ℓ/min, 100ℓ/min, 200ℓ/min) - Can be used in explosion-proof environments as it does not require power supply - Compliant with RoHS regulations *Cannot be used under reduced pressure as it will not dehumidify *As a dehumidifying filter, it does not remove debris

Price information

・IAD3 List Price: ¥19,800 ・IAD10 List Price: Open ・IAD20 List Price: Open

Price range

P2

Delivery Time

P4

Delivery dates may vary depending on the model and quantity, so please feel free to contact us.

Model number/Brand name

IAD Series

Applications/Examples of results

■Usage Purposes - Prevention of moisture leakage from piping - Prevention of electric leakage due to moisture flowing into electrical components - Prevention of deterioration of driving equipment caused by moisture - Prevention of fogging caused by water vapor in air blowing - Prevention of moisture contamination in gas component analyzers, oxygen concentrators, and ozone generators - Prevention of condensation in air supply for cooling water piping and sub-zero environments
