Thrust plate measurement device
Equipped with two operation modes (manual/automatic) and three driving modes (individual/local/remote)!

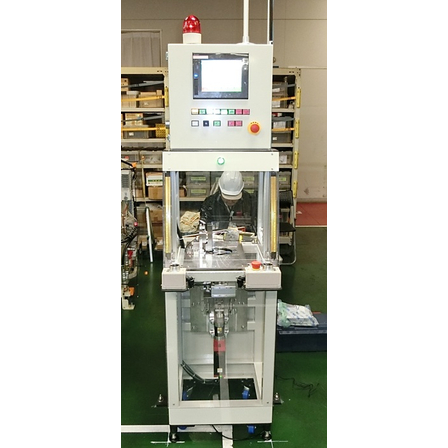

The "Thrust Plate Measurement Device" is a device that measures the thickness of a thrust plate using a laser. When the operator sets the workpiece in the fixture and presses the measurement start button, a pair of laser sensors set above and below measures the thickness of the workpiece. The workpiece rises and rotates through an ascending mechanism and a rotating mechanism, measuring the thickness at a total of three points, and after the inspection is complete, the measurement results are displayed on the monitor (average value of the three measurements). 【Main Device Specifications (Partial)】 ■ Equipment Size: Width 500 × Height 1979 × Depth 430 mm (Weight: 0.2t) ■ Workpiece Measurement Accuracy: ±1.0μm ■ Power Supply: AC200V 3-phase (Power: 2.5kVA) *For more details, please refer to the PDF document or feel free to contact us.
basic information
【Measurement Section】 ■Measurement Points: 1 point × 3 locations (120° intervals) → Total of 3 points ■Calibration (CAL): Before starting measurements, thickness measurements are performed using a pre-prepared master work to confirm that thickness can be measured correctly. ■Touch Panel ■External Communication: Ethernet communication (using the built-in LAN port of the sequencer's MES unit) *For more details, please refer to the PDF document or feel free to contact us.
Price range
Delivery Time
Applications/Examples of results
For more details, please refer to the PDF document or feel free to contact us.
