Hot Melt Station "Primo" for Robot Applications
Uniform adhesive application at dynamic speeds! Available in a wide variety of options.

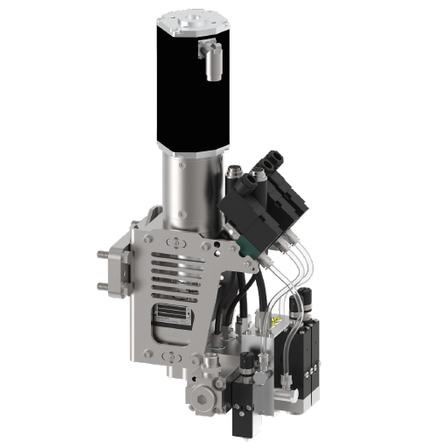

"Primo" is an adhesive injection head that achieves uniform adhesive application when performing bead or spiral spraying at various speeds, such as in industrial robot applications. Adhesive is supplied not only through the pump of the hot melt applicator but also through the gear pump of the injection head itself. This structure ensures that the amount of adhesive supplied from the pump exactly matches the amount applied, achieving high injection accuracy. 【Features】 ■ Lightweight and compact adhesive injection head for medium-sized industrial robots ■ Available in a wide variety of options ■ Easily and flexibly integrated into movable units or fixed to machines ■ Accurately injects and applies adhesive regardless of speed ■ Bead/spray application with the same application head *For more details, please download the PDF or feel free to contact us.
basic information
【Technical Data (Partial)】 ■ Temperature Range: 20 to 200°C ■ Adhesive Pressure: Maximum 100 bar ■ Adhesives: PUR-, PO-, POR-, EVA-, PSA adhesives ■ Adhesive Viscosity: 1,000 to 50,000 mPas ■ Supply Voltage: 200 to 240 VAC, 50/60 Hz *For more details, please download the PDF or feel free to contact us.
Price range
Delivery Time
Applications/Examples of results
For more details, please download the PDF or feel free to contact us.
