Chemical industry-oriented ceramic spin gauges with excellent chemical resistance.
Strong against corrosion! Maintain measurement accuracy with zirconia ceramic pin gauges.
In the chemical industry, precise measurements are required in environments where highly corrosive chemicals are used. Conventional metal pin gauges are susceptible to corrosion from chemicals, which can lead to a decrease in measurement accuracy. Zirconia ceramic pin gauges possess excellent chemical resistance, allowing for stable measurement accuracy without concern for chemical corrosion. [Application Scenarios] - Measurement of small diameter holes in environments exposed to chemicals - Calibration of measuring instruments affected by corrosive substances - Inspection of precision parts in chemical plants [Benefits of Implementation] - Maintenance of measurement accuracy - Improvement of product quality - Reduction of measurement costs
basic information

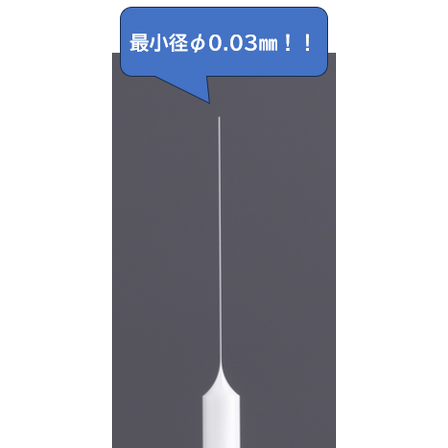

【Features】 - Made of zirconia ceramics with high chemical resistance - High hardness and wear resistance - Extremely small diameter types starting from φ0.03mm - Tolerance accuracy of ±0.3μm to ±1μm - Can also be used as a master pin gauge for measuring instrument calibration 【Our Strengths】 - Fine precision machining technology (minimum outer diameter φ0.01 and outer diameter tolerance ±0.0001, roundness 0.0001mm) - Capability to handle a variety of materials (zirconia, carbide, etc.) - Quality assurance through ISO9001 certification - Consistent support from material procurement to processing
Price range
Delivery Time
Applications/Examples of results
Usage - For measuring the inner diameter of small holes - Master pin gauge for calibrating measuring instruments, etc.
catalog（2）
Download All Catalogs
Recommended products
Distributors
Our company supplies products in the form of pins and shafts made from materials such as cemented carbide and fine ceramics to major tool manufacturers, electronic component manufacturers, and automotive parts manufacturers. Additionally, we manufacture and sell PCD (polycrystalline diamond) wear-resistant tools developed in response to our internal needs. Features of Sanwa Creation: - Micro precision machining: Minimum outer diameter of φ0.01, outer diameter tolerance of ±0.0001, roundness of 0.0001 (unit: mm) - Machining capacity: Currently accepting orders from a minimum lot of 1 piece to tens of thousands of pieces on a monthly basis - Material procurement: Direct procurement of materials is possible from almost all domestic cemented carbide manufacturers. We can also procure materials from European manufacturers and Asian manufacturers in Taiwan, China, and South Korea. We can handle everything from material procurement to processing for fine ceramics as well. - Processed materials: Cemented carbide, zirconia, alumina, silicon nitride, silicon carbide, SIC, SKH51, SUS, SKD, titanium, nickel titanium, ferro-titanium, polycrystalline silicon, etc. - Inspection guarantee system: ISO 9001 certified, calibration certificates for measuring instruments can be issued upon request.
