Markless Vacuum Pad HT1
Minimize suction marks as much as possible! Markless material pads suitable for the suction of resin molded products, glass, and solar cells!
This is a vacuum pad suitable for removal from injection molding machines. Schmalz has developed a markless rubber that does not contain silicone, a paint-inhibiting substance. It minimizes the occurrence of adhesion marks that can be problematic during painting, as it leaves fewer suction traces. It also has excellent temperature resistance, allowing it to hold workpieces at temperatures up to 140°C for extended periods.
basic information
The HT1 series vacuum pads are suction pads made from markless rubber that does not contain silicone, which is the source of suction marks. Not only does the material not contain silicone, but the release agent used during pad molding also does not use silicone-based oil. They are suitable for suction applications for not only resin products but also solar cells and glass, which dislike marks. 【Features】 ■ Can suction with minimal marks left, suppressing lifting during painting after molding ■ Heat resistant up to 140°C for long periods and 170°C for short periods ■ A wide range of designs and sizes including flat, bellows, and oval shapes ■ Suitable for suction transport of plastics, solar cells, plate glass, etc.
Price information
-
Delivery Time
Model number/Brand name
HT1
Applications/Examples of results

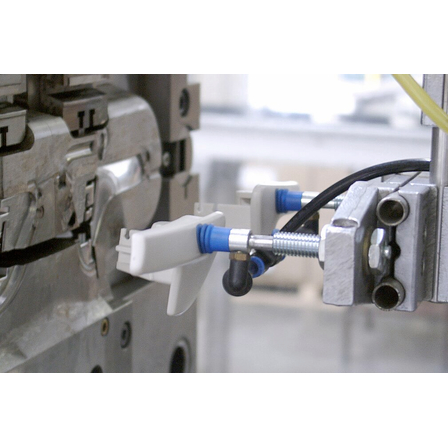

- Removal of resin products from the injection molding machine - Transport of glass sheets - Adhesion of solar cells - Adhesion of printed circuit boards
Line up（11）
| Model number | overview |
|---|---|
| Q-HT1, QN-HT1 | Highly versatile round vacuum pads. Flat type. Q: without nipple (replacement), QN: with nipple. Size: φ2mm to φ80mm. |
| SG-HT1, SGN-HT1 | Vacuum pads with particularly long shafts. SG: without nipple (replacement), SGN: with nipple. Size: φ10mm. |
| SGP-HT1, SGPN-HT1 | Round vacuum pads for films, paper, and wafers. Flat type. SGP: without nipple (replacement), SGPN: with nipple. Size: φ15mm, φ24mm, φ30mm, φ40mm. |
| FGA-HT1, FSGA-HT1 | 1.5-stage bellows type vacuum pads. FGA: without nipple (replacement), FSGA: with nipple. Size: φ6mm to φ78mm. |
| FSGPL-HT1 | Large vacuum pads of 1.5-stage bellows type. Size: φ100mm to φ250mm. |
| FG-HT1, FSG-HT1 | 2.5-stage bellows vacuum pads with high work-following and cushioning effects. FG: without nipple (replacement), FSG: with nipple. Size: φ3mm to φ62mm. |
| SGO-HT1, SGON-HT1 | Oval type vacuum pads. SGO: without nipple (replacement), SGON: with nipple. Size: 2x4mm to 25x75mm. |
| SGF-HT1 | Flat type vacuum pads for plate glass. Size: φ125mm to φ200mm. |
| SAB-HT1 | Grooved vacuum pads of 1.5-stage bellows type. Size: φ22mm to φ125mm. |
| SAOB-HT1 | Grooved oval type vacuum pads of 1.5-stage bellows type. Size: 60x30mm, 80x40mm, 110x55mm, 140x70mm. |
| SAB2-P-HT1 | Plug-in type vacuum pads of 2.5-stage bellows type. Size: φ20mm. |
