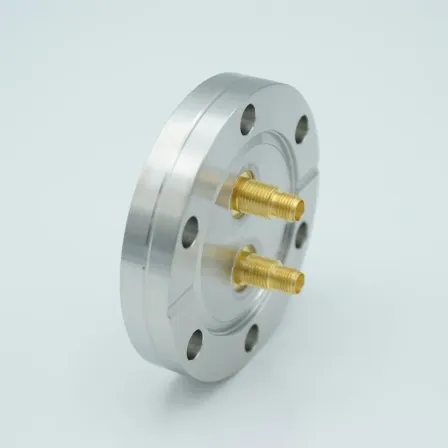

High-frequency coaxial current input terminal
High-frequency coaxial current feedthrough for use in high vacuum and ultra-high vacuum containers.
This product is a high-frequency coaxial current introduction terminal for new products. SMA has an impedance of 50Ω, a frequency of 18GHz, and a maximum voltage of 1Kv. SMA (K-TYPE) has an impedance of 50Ω, a frequency of 40GHz, and a maximum voltage of 1Kv RMS. 【Features】 ■SMA type / SMA (K-TYPE) ■Frequency: SMA 18GHz, SMA (K-TYPE) 40GHz ■Mounting options include ICF flange and NW flange, among others. *For more details, please refer to the catalog or feel free to contact us.
basic information
■SMA type/SMA (K-TYPE) ■Frequency is SMA 18GHz, SMA (K-TYPE) 40GHz ■Mounting parts can be selected from ICF flanges and NW flanges, among others. *For more details, please refer to the catalog or feel free to contact us.*
Price range
Delivery Time
Applications/Examples of results
For more details, please refer to the catalog or feel free to contact us.
Detailed information
catalog（1）
Download All Catalogs
Recommended products
Distributors
We can provide penetration seals for everything from electric wires, electrodes, coaxial cables, thermocouples, to optical fibers. We can accommodate extreme low temperatures to high temperatures, ultra-high vacuum to high pressure, and all types of atmospheres. Leave hermetic sealing to us.
