[Processing Example] Thomson Type Base Plate Shared Use with Different Devices
An example of improving the shape of the base plate to allow shared use of Thomson-type devices across different equipment!

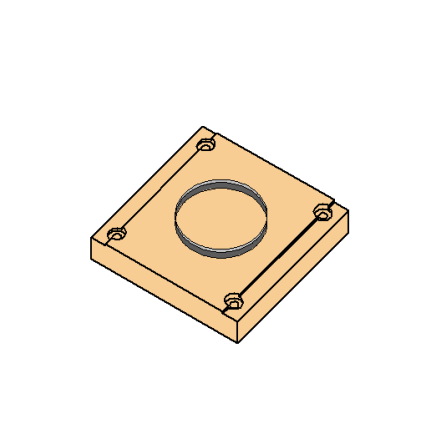

Here is an example of the shared use of Thomson-type base plates for different devices. There are multiple types of press devices that use the Thomson type, and the shape of the base plate (foundation) to which the Thomson type is attached differs for each model. We improved the shape of the base plate so that the Thomson type can be shared among different devices. This has increased the options for processing equipment and made it possible to distribute processing to another device when focusing on one device. [Issues] - Due to the production system of small quantities and many varieties, concentrating on one processing device can lead to being overwhelmed with delivery deadlines. - Purchasing Thomson types for two different models incurs unnecessary expenses (tens of thousands of yen per unit). *For more details, please download the PDF or feel free to contact us.
basic information
【Improvement Effects】 ■ The options for processing equipment have increased, allowing for the distribution of processing to different devices when focusing on one device. ■ Since a Thomson-type die costs tens of thousands of yen for one side, being able to use two types of equipment with the purchase of one side helps reduce die costs, and the distribution of processing equipment also contributes to a reduction in overtime hours. *For more details, please download the PDF or feel free to contact us.
Price range
Delivery Time
Applications/Examples of results
For more details, please download the PDF or feel free to contact us.
