High-frequency measurement test socket

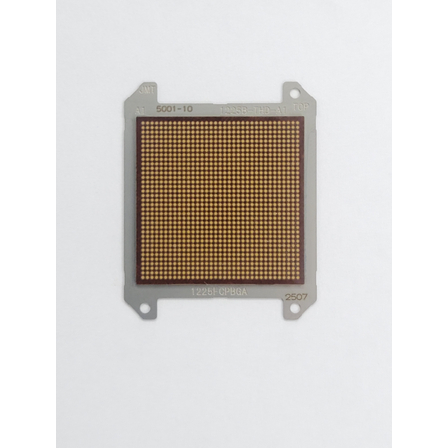

As communication generations progress with 5G, 5G-Advanced, and 6G, the PCR socket addresses the challenges of high-frequency measurements in the demand for increased speed.
As a wide range of devices become increasingly connected to the internet, the demand for high-speed communication continues to expand. At the same time, with the rapid advancement of Advanced Driver Assistance Systems (ADAS), the need for high-performance semiconductors is growing significantly. However, testing these high-specification semiconductors presents various technical challenges, requiring more stable and reliable testing solutions. The PCR socket addresses these challenges by enabling flexible electrode diameter design and leveraging the advantages of short-distance signal paths. This ensures stable and accurate measurement performance, even under demanding conditions. We also provide solutions for millimeter-wave measurement requirements. For detailed specifications, we offer fully customized designs tailored to each project. Please feel free to contact our representative for further information.
basic information
- Compatible pitch: 1.27 to 0.25 mm * The compatible electrode length and magnetic pole diameter vary for each pitch. - Compatible grid number: 100 x 100 (approx.) * The compatible grid number varies depending on the pitch. - Compatible size: 100 x 100 mm (electrode area/approx.) * The compatible size varies depending on the pitch. - Operating temperature range: standard type/-40 to 125°C, wide range type/-55 to 150°C
Price range
Delivery Time
Applications/Examples of results
- Final selection test (handler) - System level test / SLT - High-frequency verification evaluation - Design verification evaluation - Reliability evaluation - Debug verification - Inter-board connection (short-distance connection connector, solder replacement) / BtoB - Burn-in test
catalog（3）
Download All Catalogs
Recommended products
Distributors
JMT Corporation is a company that handles PCR (rubber sheets), pressure conductive sheets for semiconductor package inspection, and jigs & pressure conductive sheets for printed circuit board inspection. We will provide high-performance test contactors by integrating our long-cultivated plating technology, photolithography technology, laser technology, and PCR technology. Please feel free to contact us if you have any inquiries.
