High-frequency IC measurement PCR sheet (distributed PCR)
Distributed PCR is a sheet-type semiconductor test contactor that can connect to all points in the plane without the need for positioning.

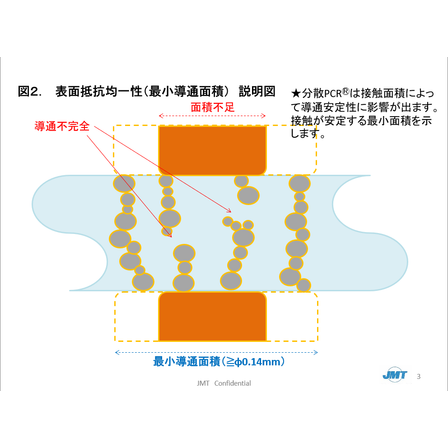

This is a conductive sheet that randomly incorporates conductive particles into a thin silicone rubber. By applying pressure (distorting it), the conductive particles within the sheet come into contact and create conductivity in the vertical direction. Since the areas that are pressed (distorted) conduct electricity, the entire surface can act as an electrode, allowing for use without the need for positioning. Additionally, when combined with a ProbePin socket, it is expected to reduce pin damage to the measured object. However, please understand that the operating environment is limited to room temperature, and there may be differences in resistance values depending on the connection points. For more detailed information, please feel free to contact our company.
basic information
- Compatible Pitch: ~0.3mm * The required area varies depending on the product thickness. - Compatible Thickness: 0.1mm, 0.1mm, 0.08mm, 0.06mm * The resolution varies depending on the thickness. - Compatible Size: Maximum size: 430mm x 350mm (thickness 0.08mm or more), 430mm x 230mm (thickness 0.06mm) * This is a proposal for standard sizes. - Operating Temperature Range: Room temperature
Price range
Delivery Time
Applications/Examples of results
- Reduction of pin damage by ProbePin socket - High-frequency verification evaluation - Design verification evaluation
Detailed information
catalog（1）
Download All Catalogs
Recommended products
Distributors
JMT Corporation is a company that handles PCR (rubber sheets), pressure conductive sheets for semiconductor package inspection, and jigs & pressure conductive sheets for printed circuit board inspection. We will provide high-performance test contactors by integrating our long-cultivated plating technology, photolithography technology, laser technology, and PCR technology. Please feel free to contact us if you have any inquiries.
