Socket for System Level Testing (SLT)
By leveraging the advantages of short-distance connections, it is possible to conduct characteristic verification in a state close to the implementation status.

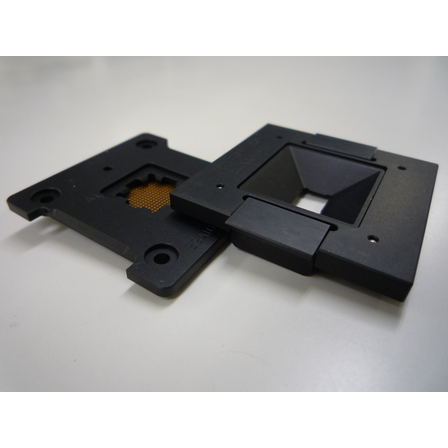

The PCR socket is a sheet contact type, allowing for short-distance connections that make contact with the target object over a surface (area). The connection state is close to that of the implementation state, and with minimal characteristic loss, it enables stable measurements that are closer to the actual equipment. Therefore, it can be applied in applications that require detailed characteristic data verification, such as design validation, system-level testing, and failure analysis. The shape can also be freely designed, allowing measurements on actual products where socket installation is difficult (a pressure mechanism needs to be considered separately). For detailed specifications, individual designs will be conducted for each project, so please feel free to contact our company representative.
basic information
- Compatible pitch: 1.27 to 0.25 mm * The compatible electrode length and magnetic pole diameter vary for each pitch. - Compatible grid number: 100 x 100 (approx.) * The compatible grid number varies depending on the pitch. - Compatible size: 100 x 100 mm (electrode area/approx.) * The compatible size varies depending on the pitch. - Operating temperature range: Standard type/-40 to 125℃, Wide range type/-55 to 150℃
Price range
Delivery Time
Applications/Examples of results
- Final Selection Test (Handler) - System Level Test / SLT - High Frequency Verification Evaluation - Design Verification Evaluation - Reliability Evaluation - Debug Verification - Inter-board Connection (Short Distance Connection Connector, Solder Replacement) / BtoB - Burn-in Test
