What is a pressurized conductive sheet that allows for stable electrical testing? *Technical materials available.
A sheet socket that enables stable inspection in semiconductor back-end process inspection! What is "PCR" that allows high-speed and high-density measurements? Technical materials on operating principles and more will be provided!

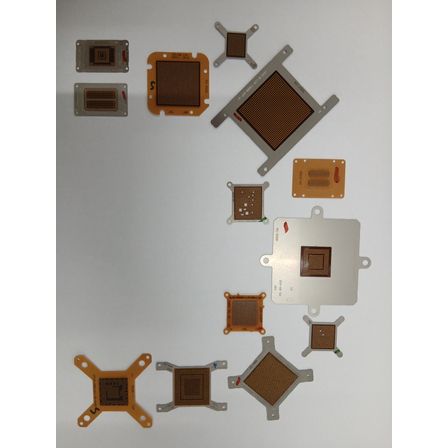

Sheet Socket PCR (Pressure-sensitive Conductive Rubber) is a pressure conductive sheet contactor with metal particles aligned in the thickness direction. By applying pressure to the electrodes, the metal particles inside the sheet come into contact with each other, forming numerous conductive pathways. This achieves low contact resistance and high signal stability compared to spring pins and general conductive rubber! Additionally, its structure allows for solderless connections, minimizing damage to the device under test (DUT) or measurement substrates. It has a high tolerance for positional misalignment, enabling stable connections even in fine pitch and multi-pin environments. It is being increasingly adopted for a wide range of applications, including advanced packages, chiplets, SoC/memory evaluation, and BtoB connections. 【Features】 ■ Does not damage solder balls or measurement substrates! ■ Exhibits excellent performance in high-frequency testing ■ Offers superior cost advantages in fine and multi-pin package testing ■ Easy maintenance due to its simple structure In the PDF download, you can find technical materials that clearly explain the "operating principle" and "PCR." *For more details, please download the PDF or contact us directly.
basic information
【Other Features】 The short contact length reduces reflection loss and impedance variation, resulting in excellent waveform reproducibility and measurement data stability in the high-frequency range. 【Exhibition Information】 ■Exhibition Name: SEMICON Japan 2025 ■Date: December 17, 2025 (Wednesday) - December 19, 2025 (Friday) Venue: Tokyo Big Sight Booth Number: East Hall 4 "4731" We look forward to your visit. *For more details, please download the PDF or contact us directly.
Price range
Delivery Time
Model number/Brand name
Sheet socket "PCR"
Applications/Examples of results
【Usage Examples】 - Final Test (Mass Production Selection): For high-speed memory and multi-pin logic products - System Level Test: Chiplet/high-frequency module evaluation - Debug Test: Characteristic analysis in an equivalent implementation environment (Chip size PCR compatible) - BtoB Connection: Detachable connections between boards, probe card applications - Image Sensor Measurement: Optical measurement support with suction-type socket structure - Board Protector Applications: Measurement board protection, repair reduction, stable conductivity
catalog（3）
Download All Catalogs
Recommended products
Distributors
JMT Corporation is a company that handles PCR (rubber sheets), pressure conductive sheets for semiconductor package inspection, and jigs & pressure conductive sheets for printed circuit board inspection. We will provide high-performance test contactors by integrating our long-cultivated plating technology, photolithography technology, laser technology, and PCR technology. Please feel free to contact us if you have any inquiries.
