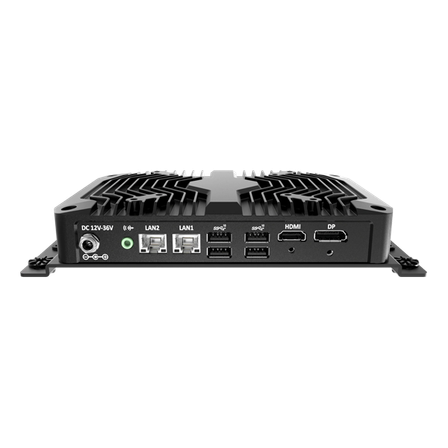

Industrial Compact Box-Type Computer "AdiCS8154"
N97/i3-N305 equipped rugged fanless box computer
<Features> ■ Equipped with Intel Alder Lake N97/N305 Processor ■ Supports DDR5 SO-DIMM (262 pins) (4800/5600 MT/s), up to 32GB (Non-ECC) ■ Dual independent display support via 1 x DisplayPort and 1 x HDMI ■ Equipped with 2 x Intel I225-V 2.5GbE LAN ports ■ Includes 1 x M.2 B-Key and 1 x M.2 E-Key expansion slots ■ 2 x COM ports, 4 x USB 3.2, 1 x Line-out ■ Supports wide range DC power input of 12-36V (AT/ATX mode support) ■ Wide temperature operation support: N97 (12W): -10 to 50°C, N305 (15W): -10 to 45°C ■ Supports TPM 2.0 (enhanced security features) ■ Complies with UL 61010-1, UL 61010-2-201, CE, FCC Class A, UKCA, VCCI, RCM
basic information
This product, like others, can be customized to meet the needs and applications of our customers. For more details, please download the PDF materials and feel free to contact us.
Price information
Please contact us.
Delivery Time
Model number/Brand name
Box-type computer
Applications/Examples of results
For more details, please refer to the PDF document or feel free to contact us.
Recommended products
Distributors
TRUSTED INDUSTRIAL HARDWARE WITH OVER 40 YEARS OF EXPERTISE ============================== Since 1981, Advanet has been designing and manufacturing industrial-grade hardware, providing embedded computers and board products for sectors such as semiconductor manufacturing, medical devices, and transportation infrastructure. We deliver end-to-end solutions, from specifications and design to development, manufacturing, and quality control, tailored to each customer’s needs. Advanet’s strengths lie in advanced technical capabilities and flexible, custom support. Using these strengths, we offer a wide range of products, including servers and box-type PCs optimized for IoT and edge AI applications. Our reliable support ensures customers can build safe, high-performance systems with confidence.
