Renesas RZ/G3L Compact Industrial Motherboard「AdiMB7103」
Renesas RZ/G3L Compact Industrial Motherboard

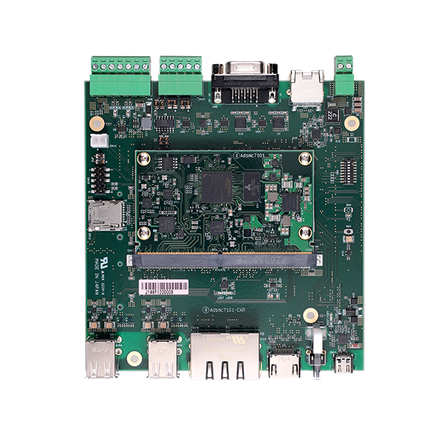

The AdiMB7103 is a compact industrial motherboard based on the Renesas RZ/G3L or RZ/G3SE processor. It supports a wide range of interfaces required for industrial computing applications, including Ethernet, USB, RS-232C, RS-485, CAN-FD, and multiple display outputs, making it ideal for HMI systems and sensor data aggregation applications. The platform integrates up to four Arm Cortex-A55 CPU cores as the main processor and an Arm Cortex-M33 core as a subprocessor. This architecture enables advanced processing tasks such as image processing while simultaneously performing realtime monitoring and control functions. For Linux-based applications, the AdiMB7103 supports the Civil Infrastructure Platform (CIP) long-term maintenance kernel, providing both long-term product availability and extended security support throughout the product lifecycle. Customization of interfaces and board form factors is also available upon request.
basic information
<FEATURES> • Compact industrial motherboard:135 x 130 x 24 mm • Renesas RZ/G3L ・ 4x Arm Cortex-A55 ・ Arm Cortex-M33 ・ Mali-G31 GPU • DDR4 memory with ECC support (up to 4 GB) • HDMI (planned compliance), MIPI-DSI, and LVDS display interfaces • Raspberry Pi compatible ・ MIPI-CSI connector ・ GPIO header • 2x Gigabit Ethernet • 4x USB 2.0 • 2x RS-232C, 1x RS-485, 2x CAN-FD • M.2 Key-B or Key-E expansion slot • USB Type-C or 5 to 24 VDC power input • Linux (CIP Kernel, Ubuntu)
