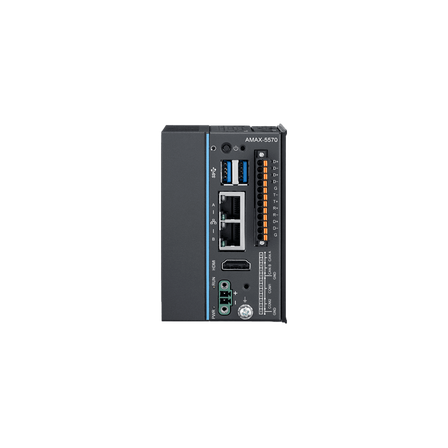

Intel Atom Embedded Controller AMAX-5570
![AMAX-5570-B_01--20250708152732[1].png](https://image.mono.ipros.com/public/product/image_sub/d39/2001557241/IPROS4844280242577583665.png?w=280&h=280)
![AMAX-5570-B_02--20250708152558[1].png](https://image.mono.ipros.com/public/product/image_sub/d39/2001557241/IPROS10369012226378126570.png?w=280&h=280)
![AMAX-5570-B_01--20250708152541[1].png](https://image.mono.ipros.com/public/product/image_sub/d39/2001557241/IPROS9530241391853963942.png?w=280&h=280)
![AMAX-5570-B_03--20250708152530[1].png](https://image.mono.ipros.com/public/product/image_sub/d39/2001557241/IPROS17108106264401946730.png?w=280&h=280)
DIN rail mount compatible, space-saving, and highly reliable control solution.
【Introduction Benefits】 - Flexible control program development with CODESYS support - High-speed and high-precision motion control via EtherCAT - Easy IT/OT integration with OPC UA and MQTT support - Expandability secured with additional Slice I/O - Space-saving design compatible with DIN rail for easy panel integration The AMAX-5570 is an industrial embedded controller equipped with an Intel Atom x6414RE. It enables real-time control using CODESYS in both Windows and Linux environments, supporting motion control for up to 32 axes via EtherCAT. It standardly supports protocols necessary for IT/OT integration, such as OPC UA and MQTT, accelerating the adoption of industrial IoT. Additionally, it allows for the expansion of EtherCAT Slice I/O from the AMAX-5000 series, enabling flexible system construction. Its compact design compatible with DIN rail facilitates easy integration into factories and control panels.
basic information
- 1ms real-time control compatible BIOS & embedded OS (Windows/Linux) - Smooth control of 32 axes with 500 μs EtherCAT communication in a Linux environment - CODESYS compatible with IT connectivity via OPC UA and Modbus TCP/RTU communication - Enable OT connectivity (EtherCAT, PROFIT, Ethernet I/P, CANopen) with CODESYS - Intel Atom x6414RE processor - 2 × GbE, 2 × USB, 2 × isolated COM, 2 × isolated CAN 2.0, 1 × HDMI - 1 × M.2 B key, AMAX-5000 slice I/O expansion (E-bus) - Industrial UL 61010 compliant
Price range
Delivery Time
Model number/Brand name
AMAX-5570 V2
Applications/Examples of results
[Applications and Examples of Achievements] - Motion control of machine tools and robots - Equipment monitoring and control in smart factories - Real-time control of semiconductor manufacturing equipment - Data collection for energy management systems - Integration of industrial networks as an IoT gateway
Line up（1）
| Model number | overview |
|---|---|
| AMAX-5570-E2300B | Intel Control Platform, x6414RE, 8G/64G, 2LAN w/2CAN bus, BareBOM |
catalog（3）
Download All Catalogs
Recommended products
Distributors
In 1983, Advantech (Advantech Co., Ltd.) was founded in Taiwan. For over 40 years, we have been developing high-quality and high-performance computers for industrial applications. As of 2024, we offer a lineup of over 3,000 various IoT devices. As the world's No. 1 manufacturer in the industrial computer market, with a presence in 95 cities across 26 countries, we aim to cultivate a prosperous future by solving social issues through AI × IoT platform services. *Source: OMDIA - No. 1 in global market share for industrial PCs, 42.5% (2023 edition)* In Japan, we established Advantech Co., Ltd. in 1997. In 2018, we formed a capital and business alliance with Omron Nogata Co., Ltd. to further expand sales and to quickly respond to market demands by offering design to production (DMS/ODM) services. By merging Taiwan's speed with the technological expertise we have cultivated over the years, we will establish a brand that meets the needs of our partners.
