What is CODESYS? CODESYS is a software PLC developed by the German company CODESYS GmbH, leading the world with manufacturer-independent IEC 61131-3 programming. Features of CODESYS: - It supports all commonly used languages in PLCs, such as ladder diagrams and ST, providing an easy-to-learn environment. - You can complete program creation, debugging, and communication settings all within a single tool. - It allows for simulation by running a virtual controller on a PC, enabling immediate development. - Being manufacturer-independent means that once you learn it, you can apply it to a wide range of devices. - With a rich user community and documentation, it is easy to obtain information and suitable for self-study. - Standard features include web visualization, tracing, and logging functions that are useful for operation and maintenance. Global Achievements of CODESYS: - Millions of CODESYS-compatible devices - Over 1,000 types of devices - More than 500 manufacturers - Over 300,000 CODESYS end-users - More than 2 million new licenses issued worldwide annually

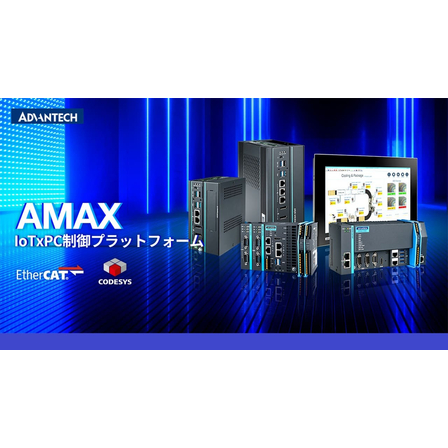

【Embedded Controller: AMAX-5 Series】 The AMAX-5 series is a compact IoT controller. Despite its small form factor, it features a high-performance CPU and flexible expandability, allowing for the integration of control, data collection, and communication in a single unit. It supports EtherCAT slice I/O and PCIe-based expansion, making it adaptable to a wide range of device designs. ■ Features - Ultra-compact form factor of 65×70×100mm significantly reduces control panel space - Fanless design supporting -20 to 60°C, high durability with 50G shock resistance - Compatible with TPM 2.0, making it ideal for secure industrial applications - Supports high-speed distributed I/O via EtherCAT and IEC 61131-3 control via CODESYS ■ Main Configuration - CPU: Intel Core (AMAX-5580 V2), Intel Atom x6414RE (5570/5570E V2), ARM Cortex-A53/A55 (5540/4540) - Right side: EtherCAT slice I/O (AMAX-5000) expansion - Left side: PCIe DAQ/communication expansion (AMAX-5400, iDAQ) - RAM 4 to 8GB, eMMC or M.2 SSD, supports up to 4MB of NVRAM

**Panel Controller: AMAX-PT Series** The AMAX-PT series is a panel-type controller that integrates HMI and control. It consolidates the operation screen and control into one unit, achieving both reduced wiring and space-saving, as well as maintainability. The PT800/700 features a modular structure that allows separation of the panel and PC box, providing high flexibility in equipment design. **Features** - Front IP66, designed to be dustproof and drip-proof - Robust design that supports a wide operating temperature range (-20 to 60°C) - Models equipped with TPM 2.0 support secure boot - Control and Web/Target visualization can be implemented in the same environment using CODESYS - Modular design allows for easy resizing and reuse during generation updates **Main Configuration** - CPU: Intel Core (PT800 V2) / Intel Atom x6425E (PT700 V2) / ARM Cortex-A53 (PT400W) - Screen: 7 to 23.8 inches (P-CAP touch) - I/F: GbE, USB, COM, M.2 (NVMe/wireless), supports 2.5-inch SSD

**IPC Controller: AMAX-7 Series** The AMAX-7 series is an industrial PC controller equipped with a high-performance CPU and abundant I/O. It can integrate device control, multi-axis motion, and image processing into a single unit, simplifying the dual configuration of PLC + IPC. It balances a robust chassis with expandability, supporting long-term stable operation. **Features** - Integration of high-load workloads such as vision processing and motion control - Rugged design with models available for -40 to 70°C (depending on the model) - Equipped with TPM 2.0 for secure operation - Quick development possible with CODESYS support in IEC 61131-3 language **Main Configuration** - CPU: Intel Core i5/i7 (AMAX-7580 V2) / Intel Atom X6425RE (AMAX-7570 V2) - Memory: DDR5 (7580), DDR4 (7570) - I/F: Multiple GbE, USB, isolated COM, isolated DI/DO, DisplayPort, etc. - Expansion: iDoor compatible, second stack expansion, M.2 slot

**Slice I/O: AMAX-5000 Series** The AMAX-5000 is an ultra-thin slice I/O that adopts an EtherCAT backbone. With a 12mm wide DIN rail mount, it significantly saves panel space and ensures high synchronization even in distributed configurations. It offers dedicated modules for precision control, such as timestamped DI/DO and encoders, making it ideal for high-speed triggering and multi-axis control phase management. **Main Features** - Communication: EtherCAT (slave) - Physical: Slice structure approximately 12mm wide, DIN rail mount - I/O: DI/DO, AI/AO, timestamp I/O (e.g., 5051T/5056T), encoder/counter (5081) - Expansion: Supports large-scale sub-device addressing - Applications: Distributed I/O, PSO/high-speed triggering, servo/sensor synchronization

**Block I/O: AMAX-4800 Series** The AMAX-4800 is an EtherCAT block I/O with an integrated terminal block that makes wiring and diagnostics easy. Its robust housing and front-access design streamline maintenance in the field. With three-way isolation (I/O, power, communication), it enhances noise resistance and reliability, making it suitable for distributed installations near equipment. **Main Configuration / Main Specifications** - Communication: EtherCAT (Slave) - Structure: All-in-one block type, easy maintenance with front wiring and front display - Isolation: Three-way isolation design for I/O, power, and communication - I/O: Variations including DI/DO, AI/AO, counters, etc. - Applications: Distributed I/O for horizontal equipment, field wiring focused on robustness, end nodes for long-distance segments
