New Color Gamut Evaluation for Displays: Gamut Ring Measurement System
Compliant with international standards! Quantitative evaluation of display color gamut performance through Gamut Ring assessment, free web technology seminar in October.

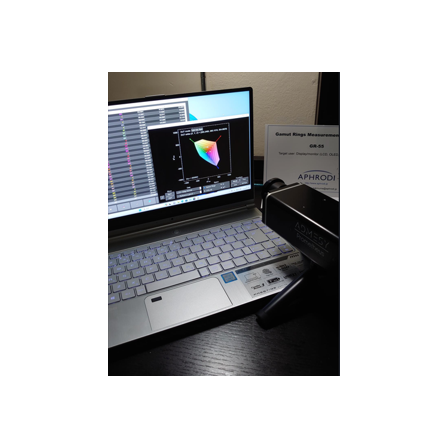

Aphrodi's "Gamut Ring Evaluation System GR-55" is the latest evaluation tool that quantifies the color gamut performance of displays based on international standards (CIE). Instead of simple comparisons using traditional color gamut coverage or triangular area, it calculates and visualizes the effective color gamut for each hue in a ring shape. It is compatible with all displays and next-generation devices, accurately measuring brightness and chromaticity distribution. By combining the evaluation software GR-55 with a luminance meter, it can be widely applied from research and development to quality assurance. In October, we will hold a free web seminar hosted by our company, and we plan to exhibit at "FINETECH JAPAN" in November. We invite you to experience the latest evaluation methods. We are currently offering free loan of the software (luminance meter). ■ Free web technical seminar in October; seminar information will be announced on our official website in early September → https://aphrodi.jp/category/seminar/ ■ FINETECH JAPAN (Electronic Display Exhibition) Makuhari Messe, November 12-14, 2025.
basic information
- Measurement method: Gamut Ring method compliant with IEC and CIE international standards IEC: 62977-2-1 2012 CIE: 246 2021 - Supported devices: LCD, OLED, MicroLED, and other display devices - Required equipment: GR-55 software + specified luminance meter - Output: Gamut Ring chart, color gamut coverage rate, hue direction plot, comparative analysis function - Measurement examples: Quantitative evaluation of color gamut, inter-device comparison, aging evaluation, analysis of differences between manufacturing lots - Supported OS: Windows 10/11 - License types: Annual license / Permanent license (selectable) - Support: Online updates, technical seminars, application support
Price range
Delivery Time
Model number/Brand name
GR-55
Applications/Examples of results
The system is being adopted by display manufacturers, material manufacturers, automotive manufacturers, and others. During the development stage, it is used for verifying the color gamut performance of new panels and light-emitting materials, while in manufacturing, it is used to confirm quality stability between lots. Additionally, in the automotive, medical, and broadcasting fields, it can be utilized as third-party comparative data that complies with international standards. It is particularly valued for its ability to visualize the reproduction performance by hue, which is difficult to capture with conventional methods, especially in next-generation devices like OLED and MicroLED. For research purposes, it is also used in academic presentations and international standardization activities, achieving reliable data acquisition. Data from actual cases and details of measurement evaluations are included in the related product technical materials in the catalog, so please download the materials. In the free webinar on October 2025 and at the FINETECH JAPAN exhibition (Electronic Display Expo in Makuhari) held from November 13 to 14, we will introduce case studies and usage methods, and you can see actual measurement demonstrations.
Detailed information
-
Case 1: The measurement results of the LCD monitor and the evaluation data based on BT2020 show that the colors in the gray area are not being reproduced. Coverage rate 79%.
-
Example 2: The measurement results of the LCD monitor and the evaluation data based on sRGB satisfy the sRGB standard. Coverage rate 96%.
-
Case 3: Measurement data comparing organic EL and LCD displays, with characteristics of each color easily understood and quantified.
Related Videos
Line up（2）
| Model number | overview |
|---|---|
| Measurement service | We accept measurements of display Gamut rings. Please contact us. |
| Gamut Rings Technical Seminar | Currently conducting free webinars and free individual seminars. Please contact us. |
catalog（2）
Download All Catalogs
News about this product（2）
-
Notice of Participation in the 35th FINETECH JAPAN - Experience New Standards for Display Evaluation
We will be exhibiting at the **35th "FINETECH JAPAN (Electronic Display Industry Exhibition)"** held at Makuhari Messe from November 12 (Wednesday) to 14 (Friday). Our theme this time is "From the Origin to the Future: Display Evaluation is Changing." At this exhibition, we will showcase solutions for measuring the "appearance" of displays with new standards. SMS Series: Quantifying glare and anti-glare properties MTF Measurement Series: Evaluating image blur and clarity Gamut Rings GR-55: A new way to present color gamut Admesy Measurement Instruments: High-precision color and luminance meters, spectrometers Please experience the "true image quality evaluation" required for the latest and next-generation displays at our booth. We will have demo units on display.
-
[1st Free Web Seminar] The Journey of Color Reproduction: How Gamut Rings Change the "Common Sense of Color Gamut Evaluation"
The seminar series "Traveling through the 'Space-Time' of Display Technology" by Aphrodite is finally starting. The inaugural session will thoroughly explain the Gamut Rings color gamut evaluation technology, which is gaining attention in the display industry, with the theme "Journey of Color Reproduction." Experience this innovative technology aimed at becoming the industry standard, which has also begun to be adopted by RTINGS (a review site). - Understand the latest in color gamut evaluation - Learn how to utilize the new indicator, GR-55, that directly connects to practical applications - Gain insights that can differentiate in development and quality assurance 【Event Overview】 Date: October 16, 2025 (Thursday) Time: 13:30 - 14:10 (30-minute lecture, 10-minute Q&A) Speaker: Koichiro Kakinuma, Advisor at Aphrodite Inc. (former Sony Corporation) 【Seminar Content】 1) Reasons why color gamut evaluation is gaining attention 2) The "invisible wall" of traditional color gamut evaluation 3) The innovation and overview of Gamut Rings 4) Measurement methods and how to utilize the new indicator, GR-55 5) Thorough comparison with actual measurement data (graphs and case studies) 6) Practical examples and effects 7) Conclusion 8) Q&A Please apply using the form below (Deadline: October 14).
