Non-combustible sheet "Thermo Barrier Fit"
Suppress heat in the work environment with extensive sheet formation! A highly functional fireproof sheet that is easy to use.
This product is a non-combustible sheet that significantly cuts down on heat emitted from drying ovens and machinery, effectively containing heat release. By combining glass fiber cloth with a special resin sheet and applying aluminum foil on both sides, it cuts radiant heat by 97%. It can be sewn to create wide sheets similar to tents. It is safe to touch, as it does not get hot, and it has passed heat resistance tests, showing no abnormalities after being left in a 210°C environment for 24 hours. In thermal conductivity tests, it demonstrates performance approximately ten times that of fireproof clothing standards. 【Features】 ■ Cuts radiant heat by 97%, alleviating heat and cold ■ Easy to use with a curtain-style design ■ Safe to touch, ensuring safety measures ■ Non-combustible certified sheet (Certification number NM-5169) ■ Custom manufacturing available *For more details, please download the PDF or feel free to contact us.
basic information
【Specifications】 ■Product Type: 0.2mm Type ■Product Structure: Aluminum Foil + Glass Cloth + Aluminum Foil ■Product Size: 1.2m×20m, 1.2m×40m ■Thickness: 0.17mm to 0.2mm ■Weight: 202g/m² ■Emissivity: 3% ■Tensile Strength (Vertical): 2630N (268kgf) ■Tensile Strength (Horizontal): 1630N (166kgf) ■Aluminum Purity: 99.35% ■Operating Temperature Range: -30℃ to 210℃ ■Ministry of Land, Infrastructure, Transport and Tourism Certification Number: NM-5169 Non-combustible Certified Product *For more details, please download the PDF or feel free to contact us.
Price range
Delivery Time
Applications/Examples of results

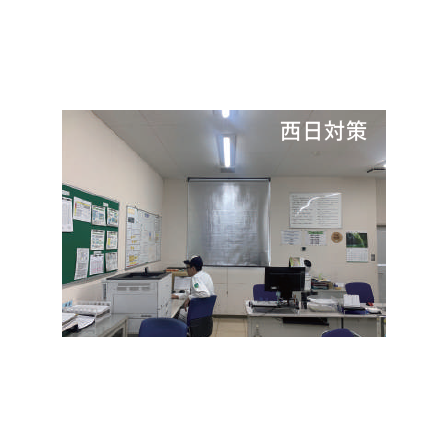

【Applications and Practical Examples】 ■ Thermal insulation and heat shielding for drying ovens and machinery ■ Cupola furnace for melting iron ■ Ceramic firing furnace ■ Roll curtains, sliding curtains, accordion curtains ■ Magnetic insect-repellent curtains and partitions *For more details, please download the PDF or feel free to contact us.
