60GHz radar sensor capable of detecting human presence even in a hot and steamy bathroom.
60GHz radar sensor equipped with a human detection algorithm that detects the presence and movement of people.
The FSM7SPA01-204001 is a 60GHz radar sensor equipped with a human detection algorithm. It is resistant to external environmental noise such as temperature, wind, and rain, and can measure targets even in the presence of obstacles, as long as the material allows radio waves to pass through. It does not collect personally identifiable information and can detect people even in heat or steam, making it ideal for installation in places where privacy considerations and the ability to handle harsh environments are necessary, such as bathrooms. It can also detect distance, allowing for actions such as turning on lights when a person approaches a specific distance, triggering alarms based on movement, or implementing emergency stops by detecting and controlling specific areas. Additionally, it can detect the distance of a person and their slow/fast movements, and it is possible to raise an alarm if there is no movement for a certain period in places like restrooms or private booths.
basic information
【Specifications】 Supported Standards: ARIB STD-T73 Frequency: 57GHz to 64GHz Detection Method: Pulse Coherent Radar Detection Range: Up to 7m Dimensions: 12×12×2.45mm typ. Weight: Less than 0.6g Construction Design Certification: 005-103273
Price range
Delivery Time
Model number/Brand name
FSM7SPA01-204001
Applications/Examples of results

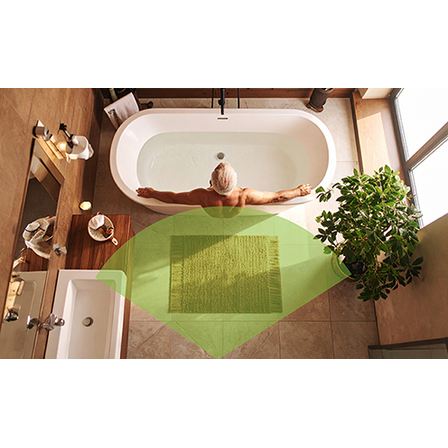

【Installation in Privacy Areas such as Bathrooms】 - Detects cessation of breathing during bathing when no longer detecting a person at a specific distance. - Unlike pyroelectric sensors, it can detect even when heated by steam. - The sensor can be hidden in lights or remote controls for use. 【Room Entry Detection】 - Determines entry by detecting a person moving quickly at a greater distance. 【Presence Detection (Work)】 - Maintains a constant distance from a person and detects movement levels to assess work status. 【Specific Area Detection】 - Allows for changing the device's response in specific areas.
Related Videos
Line up（2）
| Model number | overview |
|---|---|
| FSM7SPA01-204001 | Equipped with a human detection algorithm |
| FSM7SPA01-204002 | Equipped with distance measurement algorithm |
