GRAPHTEC Insulated 10-Channel Handy Logger
Adopts a fully isolated input method for all channels! Additionally, it supports multi-function input, allowing for the measurement of various phenomena.
- Support for the new remote operation service "G-REMOTE" - Three new features (alarm history, enhanced CH calculations, memory loop function) - Improved usability while maintaining the operability of the GL240 - Support for fully isolated multi-function inputs across all channels - Data recording possible at a maximum of 10ms by limiting the number of channels - Wireless measurement with a PC is possible using the optional wireless LAN unit
basic information
■Voltage measurement... Wide range from 20mV to 100V ■Current (4-20mA) measurement... Optional shunt resistor of 250Ω available, dedicated 1-5V range included in the measurement range ■Temperature measurement... Thermocouples: K, J, E, T, R, S, B, N, C (formerly W: WRe5-26) ■Humidity measurement... Optional dedicated humidity sensor available, power for the sensor supplied from the main unit, dedicated humidity range included ■Digital I/O also equipped... Digital I/O can be used by connecting optional input/output cables 【Features】 ● Supports sampling speeds of up to 10ms ● Wireless LAN unit for wireless measurement with PC ● New service "G-REMOTE" (additional paid service) As long as there is an internet connection, remote operation and data recording can be easily done using a web browser. Recorded data can also be backed up to a dedicated cloud server. ● 8GB memory ensures reliable measurement even for long recording times.
Price information
Please contact us.
Delivery Time
Model number/Brand name

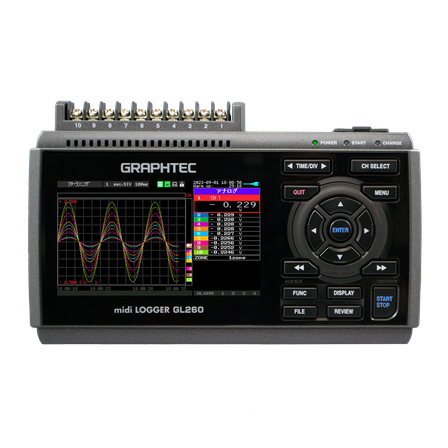

midi LOGGER GL260
Applications/Examples of results
The alarm function during abnormal occurrences and the relay recording function allow for long-term recording. By using the remote operation service "G-REMOTE," it can also be utilized for factory monitoring at overseas locations.
